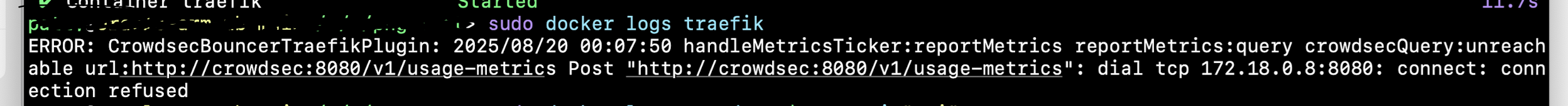

After updating the crowdsec bouncer plugin to 1.4.4 (I was on 1.4.2), I noticed the following entry when I ran docker logs traefik. Any advice on fixing it?
1 Like
I have the same issue as you, did you remember how you fixed this?
1 Like
Welcome xepos. Did you accept the enrollment on the crowdsec console and remember to add a crowdsec bouncer and put the API key in the config?
2 Likes
Hi Mattercoder. No, Iāve not. However, when I log in I donāt see the option to accept to enrollment, I only see the steps to do the enrollment itself. Iāve included the API key in the docker compose file. I donāt understand what you mean by crowdsec bouncer. Is it a plugin that I need to install as well? Is that from the middleware-manager?
1 Like
There are 2 things you need to get it working. You need an enrollment key from crowdsec that you replace in the docker compose. See this line:
ENROLL_KEY: REPLACE_WITH_CROWDSEC_ENROLLMENT_KEY
see step no 1 above
The bouncer api key is needed for the middleware plugn (traefik bouncer) see step 9 above
1 Like
crowdsec:
image: crowdsecurity/crowdsec:latest
depends_on:
- gerbil
container_name: crowdsec
command: -t
environment:
ACQUIRE_FILES: /var/log/traefik/*.log
COLLECTIONS: crowdsecurity/traefik crowdsecurity/appsec-virtual-patching crowdsecurity/appsec-generic-rules cro>
ENROLL_INSTANCE_NAME: pangolin-crowdsec
ENROLL_TAGS: docker
ENROLL_KEY: HIDDEN-CROWDSEC-KEY
GID: "1000"
PARSERS: crowdsecurity/whitelists
healthcheck:
interval: 10s
retries: 15
timeout: 10s
test: ["CMD", "cscli", "capi", "status"]labels:
- traefik.enable=false
ports:
- 8080:8080
- 6060:6060
expose:
- 8080
- 6060
- 7422
restart: unless-stopped
volumes:
- ./config/crowdsec:/etc/crowdsec
- ./config/crowdsec/db:/var/lib/crowdsec/data
- ./config/traefik/logs:/var/log/traefik
Yes, that step I got. Iāve included the enrollment key in the docker-compose file. Can I proceed with the other steps even when I canāt get crowdsec running at step 6?
1 Like
I see that when I put an invalid enrollment key, I get the same error.
level=warning msg="can't load CAPI credentials from '/etc/crowdsec/online_api_credentials.yaml' (missing login field)"
Error: cscli console enroll: the Central API (CAPI) must be configured with 'cscli capi register'
1 Like
Did you docker run the container as per step 8 and then
touch /etc/crowdsec/online_api_credentials.yaml
cscli capi register
cscli console enroll <id>
2 Likes
Thank you for your help, almost there! I guess I just needed to proceed ahead with the steps yes. Somehow the volumes did not get mounted. So my /etc/crowdsec inside the docker run only had the empty db folder.
I manually recreated all yaml files and the other hub and patterns folder and after that I managed to enroll my ID and accept it on the crowdsec dashboard.
I copied back the generated online_api_credentials.yaml to my docket host. However I still canāt get the crowdsec container up and running, now I get the error:
Error: cscli console enroll: invalid hub index: unable to read index file: open /etc/crowdsec/hub/.index.json: no such file or directory. Run 'sudo cscli hub update' to download the index again
So I did the update in docker run cli however I canāt copy the .index.json file from cli to my docker host as the files is enormous. Is there another way to generate it?
1 Like
Oh boy, after some time I was fed up with it and I did a docker compose up -d āforce-recreate and that somehow managed to sync the .index.json file. And after that I could finish the setup of crowdsec.
@Mattercoder Thank you for your awesome guide and your help afterwards as well.
2 Likes
Hi everyone,
Iām struggling to integrate the CrowdSec Bouncer Plugin within Middleware Manager when CrowdSec is installed via the Pangolin installer.
Everything works smoothly up to step 12:
At this step, I hit a wall. Basically Middleware Manager does not detect or list the CrowdSec Bouncer as an available middleware. My goal is to enable selective CAPTCHA protection on certain resources/routes, but I canāt add the CrowdSec Bouncer middleware as described in the guide.
Brief setup & steps taken:
-
Installed Pangolin (with CrowdSec via docker compose).
-
Installed
crowdsec_managerscript -
Set up CAPTCHA with the
crowdsec_managerscript (works directly). -
Installed Middleware Manager via docker compose
-
Unable to make CrowdSec Bouncer middleware work from within Middleware Manager as shown in the step 12
-
Successfully installed and configured Geoblock middleware manually by creating a new plugin from scratch in the middleware manager with this config.
-
{ "geoblock": { "allowLocalRequests": true, "allowUnknownCountries": false, "api": "https://get.geojs.io/v1/ip/country/{ip}", "apiTimeoutMs": 500, "blackListMode": false, "cacheSize": 25, "countries": [ "US" ], "forceMonthlyUpdate": true, "logAllowedRequests": false, "logApiRequests": false, "logLocalRequests": false, "silentStartUp": false, "unknownCountryApiResponse": "nil" } }
What I want:
Currently, when applied externally (outside of Middleware Manager), the CrowdSec Bouncer/CAPTCHA protection applies globally to all endpointsāwhich is not what I need.
My goal is to apply the CrowdSec Bouncer plugin as a middleware on specific routes/resources, protecting just those selected endpoints with a CAPTCHA challenge.
Therefore:
I need to be able to deploy and manage the CrowdSec Bouncer via Middleware Manager, so I can attach it only where needed, rather than having it protect every single route indiscriminately.
Config & logs:
Attaching my Traefik static/dynamic configs and relevant other files as reference.
This is the block which Iām struggling with, from the static Traefik.
entryPoints:
web:
address: :80
websecure:
address: :443
http:
middlewares:
- crowdsec@file
tls:
certResolver: letsencrypt
transport:
respondingTimeouts:
readTimeout: 30m
experimental:
plugins:
badger:
moduleName: github.com/fosrl/badger
version: v1.2.0
crowdsec:
moduleName: github.com/maxlerebourg/crowdsec-bouncer-traefik-plugin
version: v1.4.4 # this exists alreay from PANGOLIN installation

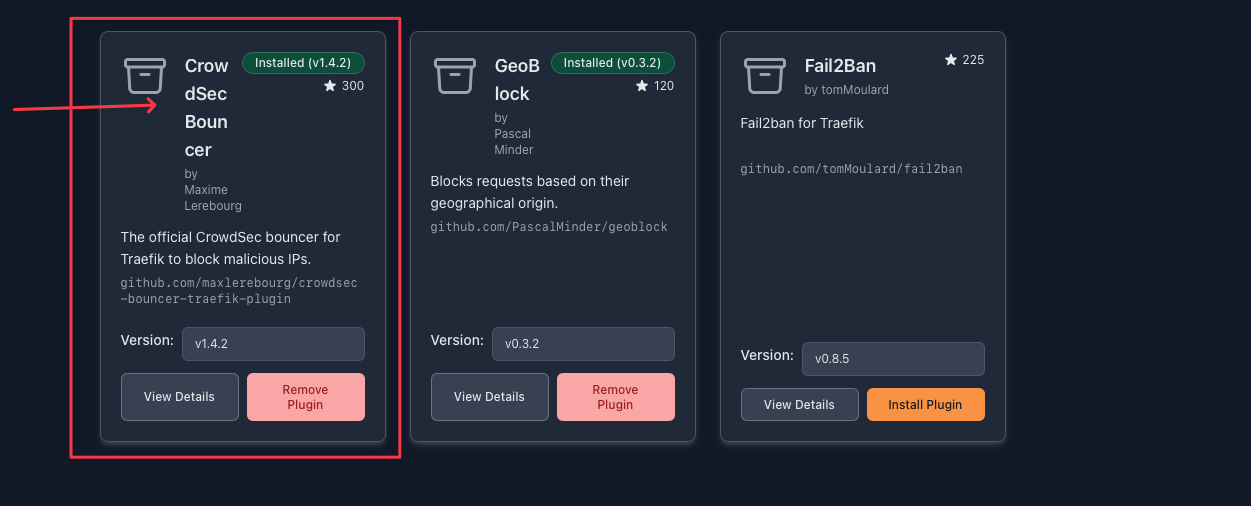

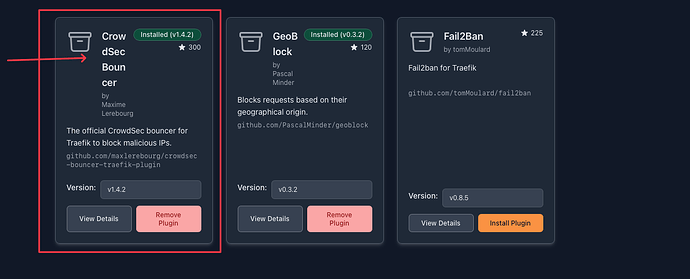

crowdsec-bouncer-traefik:
moduleName: github.com/maxlerebourg/crowdsec-bouncer-traefik-plugin
version: v1.4.2 #this is added by the middleware manager
This is the Traefik dynamic config (Which, by the way, CAPTCHA setup works perfectly, but outside of the MiddlewareManager.)
http:
middlewares:
crowdsec:
plugin:
crowdsec:
clientTrustedIPs:
- 0.0.0.0/8
- 0.0.0.0/12
- 0.0.0.0/16
- 0.0.0.0/20
crowdsecAppsecBodyLimit: 10485760
crowdsecAppsecEnabled: true
crowdsecAppsecFailureBlock: true
crowdsecAppsecHost: crowdsec:7422
crowdsecAppsecUnreachableBlock: true
crowdsecLapiHost: crowdsec:8080
crowdsecLapiKey: secret
crowdsecLapiScheme: http
crowdsecMode: live
defaultDecisionSeconds: 15
enabled: true
captchaProvider: turnstile
captchaSiteKey: "secret"
captchaSecretKey: "secret"
captchaGracePeriodSeconds: 1800
captchaHTMLFilePath: "/etc/traefik/conf/captcha.html"
forwardedHeadersTrustedIPs:
- 0.0.0.0/0
httpTimeoutSeconds: 10
logLevel: INFO
updateIntervalSeconds: 15
updateMaxFailure: 0
default-whitelist:
ipWhiteList:
sourceRange:
- 0.0.0.0/8
- 0.0.0.0/16
- 0.0.0.0/12
redirect-to-https:
redirectScheme:
scheme: https
security-headers:
headers:
contentTypeNosniff: true
customFrameOptionsValue: SAMEORIGIN
customResponseHeaders:
Server: ""
X-Forwarded-Proto: https
X-Powered-By: ""
forceSTSHeader: true
hostsProxyHeaders:
- X-Forwarded-Host
referrerPolicy: strict-origin-when-cross-origin
sslProxyHeaders:
X-Forwarded-Proto: https
stsIncludeSubdomains: true
stsPreload: true
stsSeconds: 63072000
routers:
api-router:
entryPoints:
- websecure
middlewares:
- security-headers
rule: Host(`pangolin.example.com`) && PathPrefix(`/api/v1`)
service: api-service
tls:
certResolver: letsencrypt
main-app-router-redirect:
entryPoints:
- web
middlewares:
- redirect-to-https
rule: Host(`pangolin.example.com`)
service: next-service
next-router:
entryPoints:
- websecure
middlewares:
- security-headers
rule: Host(`pangolin.example.com`) && !PathPrefix(`/api/v1`)
service: next-service
tls:
certResolver: letsencrypt
domains:
- main: "pangolin.example.com"
sans:
- "*.pangolin.example.com"
ws-router:
entryPoints:
- websecure
middlewares:
- security-headers
rule: Host(`pangolin.example.com`)
service: api-service
tls:
certResolver: letsencrypt
services:
api-service:
loadBalancer:
servers:
- url: http://pangolin:3000
next-service:
loadBalancer:
servers:
- url: http://pangolin:3002
A diagnostic check from the crowdsec manager
[+] traefik container is running
Verifying Traefik middleware configuration:
[+] CrowdSec referenced in ./config/traefik/traefik_config.yml
[+] CrowdSec referenced in ./config/traefik/*.yml
[+] CrowdSec referenced in ./config/traefik/rules/*.yml
Verifying Traefik middleware configuration:
[+] CrowdSec referenced in ./config/traefik/traefik_config.yml
[+] CrowdSec referenced in ./config/traefik/*.yml
[+] CrowdSec referenced in ./config/traefik/rules/*.yml
Verifying key configuration settings:
[+] CrowdSec LAPI key found in ./config/middleware-manager/templates.yaml
[+] CrowdSec AppSec is enabled in ./config/middleware-manager/templates.yaml
[+] CrowdSec middleware configured in ./config/middleware-manager/templates.yaml
[+] CrowdSec LAPI key found in ./config/traefik/rules/dynamic_config.yml
[+] CrowdSec AppSec is enabled in ./config/traefik/rules/dynamic_config.yml
[+] CrowdSec middleware configured in ./config/traefik/rules/dynamic_config.yml
[+] CrowdSec LAPI key found in ./config/traefik/rules/resource-overrides.yml
[+] CrowdSec middleware configured in ./config/traefik/rules/resource-overrides.yml
[+] CrowdSec middleware configured in ./config/traefik/traefik_config.yml
My docker compose file
name: pangolin
networks:
default:
driver: bridge
enable_ipv6: true
name: pangolin
services:
crowdsec:
command: -t
container_name: crowdsec
environment:
COLLECTIONS: crowdsecurity/traefik crowdsecurity/appsec-virtual-patching crowdsecurity/appsec-generic-rules
ENROLL_INSTANCE_NAME: pangolin-crowdsec
ENROLL_TAGS: docker
ENROLL_KEY: your-enrollment-key-here
GID: "1000"
PARSERS: crowdsecurity/whitelists
healthcheck:
interval: 10s
retries: 15
test: ["CMD", "cscli", "capi", "status"]
timeout: 10s
image: docker.io/crowdsecurity/crowdsec:latest
labels:
- traefik.enable=false
ports:
- 6060:6060
restart: unless-stopped
volumes:
- /path/to/data/config/crowdsec:/etc/crowdsec
- /path/to/data/config/crowdsec/db:/var/lib/crowdsec/data
- /path/to/data/config/traefik/logs:/var/log/traefik
gerbil:
cap_add:
- NET_ADMIN
- SYS_MODULE
command:
- --reachableAt=http://gerbil:3003
- --generateAndSaveKeyTo=/var/config/key
- --remoteConfig=http://pangolin:3001/api/v1/
container_name: gerbil
depends_on:
pangolin:
condition: service_healthy
image: docker.io/fosrl/gerbil:1.2.1
ports:
- 51820:51820/udp
- 21820:21820/udp
- 443:443
- 80:80
restart: unless-stopped
volumes:
- /path/to/data/config/:/var/config
pangolin:
container_name: pangolin
healthcheck:
interval: 10s
retries: 15
test: ["CMD", "curl", "-f", "http://localhost:3001/api/v1/"]
timeout: 10s
image: docker.io/fosrl/pangolin:1.10.3
restart: unless-stopped
volumes:
- /path/to/data/config:/app/config
- ./config/config.yml:/app/config/config.yml
- /path/to/data/pangolin-data:/var/certificates
- /path/to/data/pangolin-data:/var/dynamic
traefik:
command:
- --configFile=/etc/traefik/traefik_config.yml
container_name: traefik
depends_on:
crowdsec:
condition: service_healthy
pangolin:
condition: service_healthy
image: docker.io/traefik:v3.5
network_mode: service:gerbil
restart: unless-stopped
volumes:
- /path/to/data/config/traefik:/etc/traefik
- /path/to/data/config/traefik/rules:/rules
- /path/to/data/config/letsencrypt:/letsencrypt
- /path/to/data/config/traefik/logs:/var/log/traefik
- /path/to/data/pangolin-data:/var/certificates:ro
- /path/to/data/pangolin-data:/var/dynamic:ro
middleware-manager:
image: hhftechnology/middleware-manager:v3.0.3
container_name: middleware-manager
restart: unless-stopped
depends_on:
- pangolin
- traefik
volumes:
- /path/to/data/data:/data
- /path/to/data/config/traefik/rules:/conf
- /path/to/data/config/middleware-manager:/app/config
- /path/to/data/config/traefik:/etc/traefik
environment:
- PANGOLIN_API_URL=http://pangolin:3001/api/v1
- TRAEFIK_CONF_DIR=/conf
- DB_PATH=/data/middleware.db
- PORT=3456
- ACTIVE_DATA_SOURCE=pangolin
- TRAEFIK_STATIC_CONFIG_PATH=/etc/traefik/traefik_config.yml
- PLUGINS_JSON_URL=https://example.com/plugins.json
ports:
- "3456:3456"
networks:

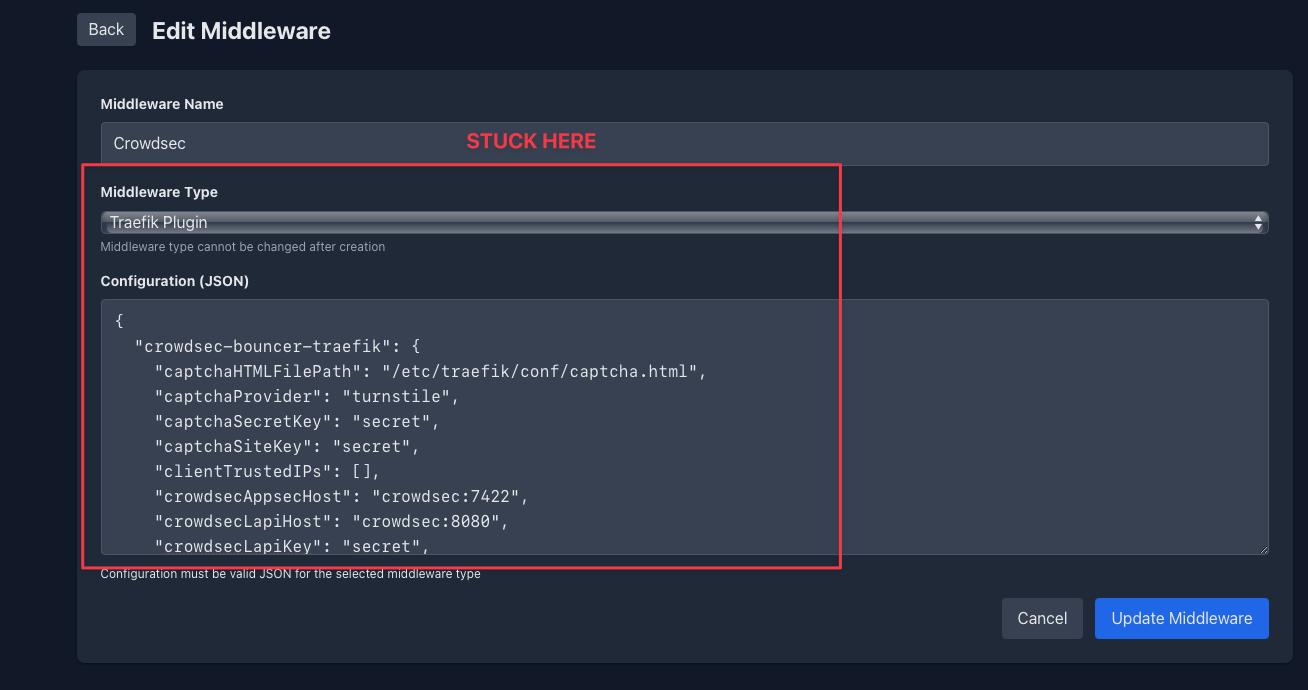

Then I got stuck here
Question:
Has anyone managed to get past this specific step (step 12) when using Pangolin with CrowdSec installed via the Pangolin installer, together with Middleware Manager?
In other words: is there a way to successfully add and use the CrowdSec Bouncer as a middleware in Middleware Manager, specifically when CrowdSec comes from the Pangolin installation process, not when installed separately?
Any insight or confirmed working setup in this scenario would be greatly appreciated!
Thank you!
1 Like
This line in your traefik_config.yml
entryPoints:
web:
address: :80
websecure:
address: :443
http:
middlewares:
- crowdsec@file #this line*****
tls:
certResolver: letsencrypt
transport:
respondingTimeouts:
readTimeout: 30m
is adding crowdsec to ALL your inbound web traffic. Remove the crowdsec middleware on the entrypoints and add crowdsec to individual routers as middlewares
2 Likes
Yes, that resolved everything!
thank you for your help and clear explanation! @Mattercoder
What I did:
-
I commented this reference section in my
traefik_config.yml
#middlewares:
# - crowdsec@filefile -
I also deleted the old CrowdSec configuration from my
dynamic_config.yml -
After that, I added the CrowdSec configuration directly through the Middleware Manager UI using the crowdsec middleware template. The manager updated the
resource-overrides.ymlautomatically.
Here is my CrowdSec config added through the Middleware Manager UI (for reference):
{
"crowdsec": {
"captchaGracePeriodSeconds": 1800,
"captchaHTMLFilePath": "/etc/traefik/conf/captcha.html",
"captchaProvider": "turnstile",
"captchaSecretKey": "XXXXXXXXXXXXXXXXXXXX",
"captchaSiteKey": "XXXXXXXXXXXXXX",
"clientTrustedIPs": [
"x.x.x.x/8",
"xxx.xx.0.0/12",
"xxx.xxx.0.0/16",
"xx.xx.0.0/10"
],
"crowdsecAppsecBodyLimit": 10485760,
"crowdsecAppsecEnabled": true,
"crowdsecAppsecFailureBlock": true,
"crowdsecAppsecHost": "crowdsec:7422",
"crowdsecAppsecUnreachableBlock": true,
"crowdsecLapiHost": "crowdsec:8080",
"crowdsecLapiKey": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
"crowdsecLapiScheme": "http",
"crowdsecMode": "live",
"defaultDecisionSeconds": 15,
"enabled": true,
"forwardedHeadersTrustedIPs": [
"0.0.0.0/0"
],
"httpTimeoutSeconds": 10,
"logLevel": "INFO",
"updateIntervalSeconds": 15,
"updateMaxFailure": 0
}
}
Now everything works as intended! I can easily apply CrowdSec/CAPTCHA protection only to selected routers via Middleware Manager.
Side note: I also noticed that the Pangolin dashboard routers (including the API) are not protected by CrowdSec by default. I assume this is intentional for admin access.
Quick question: Do you think it makes sense (from a best-practices/security perspective) to also protect the Pangolin dashboard and its API router with CrowdSec? Are there any potential downsides to securing the dashboard endpoints with CrowdSec in this setup?
Just to note: the Pangolin dashboard is not present as an endpoint in the Middleware Manager, so I assume that in order to protect it, I would need to manually tweak the dynamic configuration file directly.
Here is the relevant snippet for these routers:
routers:
api-router:
entryPoints:
- websecure
middlewares:
- security-headers
rule: Host(`pangolin.example.com`) && PathPrefix(`/api/v1`)
service: api-service
tls:
certResolver: letsencrypt
main-app-router-redirect:
entryPoints:
- web
middlewares:
- redirect-to-https
rule: Host(`pangolin.example.com`)
service: next-service
next-router:
entryPoints:
- websecure
middlewares:
- security-headers
rule: Host(`pangolin.example.com`) && !PathPrefix(`/api/v1`)
service: next-service
Thanks again for your insights!
1 Like
I do have some two questions,
Do I have to add the lines in step 12 to original plug-in, or do I have to delete the original an paste the lines in?
The Crowdsec lapi key, is this the key in local_api_credentials.yaml?
Thanks
1 Like
Hi. In step 12 you are configuring the middlewares in the middleware manager. You can select the crowdsec middleware and replace the config with the config in step 12 or just change the lapi key.
Regarding the LAPI key that comes from your crowdsec container by running
docker exec crowdsec cscli bouncers add traefik-bouncer
As outlined in step 9
1 Like
thanks, I did so, the Traefik Dashboard tells me
plugin: unknown plugin type: crowdsec-bouncer-traefik
1 Like
Make sure the name of the plugin in step 11 when you add the Crowdsec Bouncer Plugin in the Middleware Manager is the same as the plugin name you are using
1 Like
I did not change the name, after install of the plugin, I found a middleware crowdsec in the middleware section of mm. I did edit this middleware, deleted the original and pasted the text in step 12, and inserted the correct keys, then I did press update middleware.
1 Like
Check your traefik-config.yml to ensure that the plugin is getting added. If not check that you have specified the correct path to traefik_config.yml. you should see something like
experimental:
plugins:
badger:
moduleName: github.com/fosrl/badger
version: v1.1.0
crowdsec-bouncer-traefik:
moduleName: github.com/maxlerebourg/crowdsec-bouncer-traefik-plugin
version: v1.4.2
And the rest
1 Like
Thanks for your patience. My mistake was that I didnāt restart the Traefik container after adding the plugin. Now I only get one error message:
read /etc/traefik/conf/captcha.html: is a directory
1 Like
