Securing Pangolin Resources with CrowdSec and the Middleware Manager - Updated Guide

[expalmi]

Thanks, I thought I should you see access.log and syslog also. I have accepted the enrollment and see 5 alert since start.

[expalmi]

In the crowdsec logs I see

level=warning msg=“/var/log/auth.log is a directory, ignoring it.” type=file
time=“2025-06-17T17:45:25Z” level=warning msg=“/var/log/syslog is a directory, ignoring it.” type=file

In ./config/crowdsec.logs syslog and auth.log are also directories. Is this right, I thought they should be files?

[Mattercoder]

It’s probably because of this line in the docker-compose for crowdsec

volumes:
      - ./config/crowdsec_logs/auth.log:/var/log/auth.log:ro
      - ./config/crowdsec_logs/syslog:/var/log/syslog:ro

If the errors are bothering you you could remove these lines and restart crowdsec container

[expalmi]

Thanks, It doesn’t bother me anymore now that I know where it comes from and that it doesn’t affect the functionality

[expalmi]

Sorry, next problem, installing crowdsec-bouncer for traefik.
The middleware-manager can not write traefik_config.yml.tmp.
I set the absolute pass /root/config/traefik/traefik_config.yml.

[Mattercoder]

Follow the guide

Installing and Setting Up Pangolin and Middleware Manager

Installing and Setting Up Pangolin and Middleware Manager This guide walks you through installing and configuring Pangolin and the Middleware Manager from scratch on a Linux VPS, setting up your reverse proxy and authentication system with confidence. Why use the Middleware Manager? The Middleware Manager monitors resources from your chosen data source (either a Pangolin API or a direct Traefik API connection) and provides a web UI to: Define and manage custom Traefik middlewares. At…

You should be using

environment:
    - TRAEFIK_STATIC_CONFIG_PATH=/etc/traefik/traefik_config.yml

In the middleware manager docker compose

[expalmi]

I changed the path and it works now. Thanks

[knaackville]

In the docker compose file under the crowdsec service, then environment, then COLLECTIONS. Just add it to the list at the end, separated by a space from the last one there.

[phneeley]

Hi HHF, I think this line is incorrect in the guide:

“ls /etc/crowdsec/config/patterns/“

Shouldn’t it be /etc/crowdsec/patterns/

?

[E_Tv]

@Mattercoder

Middlewares manager will update there. If however you want to protect the Pangolin resources themselves you will have to manually

Im having the same loop issue. Can’t register. How did you solve it?

[Mattercoder]

Try changing the docker compose to this.

          crowdsec:
            image: crowdsecurity/crowdsec:latest
            container_name: crowdsec
            environment:
              GID: "1000"
              COLLECTIONS: crowdsecurity/traefik crowdsecurity/appsec-virtual-patching crowdsecurity/appsec-generic-rules crowdsecurity/linux
              ENROLL_INSTANCE_NAME: "pangolin-crowdsec"
              PARSERS: crowdsecurity/whitelists
              ENROLL_TAGS: docker
              ENROLL_KEY: REPLACE_WITH_CROWDSEC_ENROLLMENT_KEY
            healthcheck:
              interval: 10s
              retries: 15
              timeout: 10s
              test: ["CMD", "cscli", "capi", "status"]
            labels:
              - "traefik.enable=false" # Disable traefik for crowdsec
            volumes:
              # crowdsec container data
              - ./config/crowdsec:/etc/crowdsec # crowdsec config
              - ./config/crowdsec/db:/var/lib/crowdsec/data # crowdsec db
              # log bind mounts into crowdsec
              - ./config/traefik/logs:/var/log/traefik # traefik logs
            ports:
              - 6060:6060 # metrics endpoint for prometheus
            restart: unless-stopped
            command: -t # Add test config flag to verify configuration

[E_Tv]

Should I not use the ports and other mounts from the first post?
Or just use the crowdsec install from the installer script?

[Mattercoder]

Try adding the crowdsec service to your docker compose and check if that works. If not try the installer script

[phneeley]

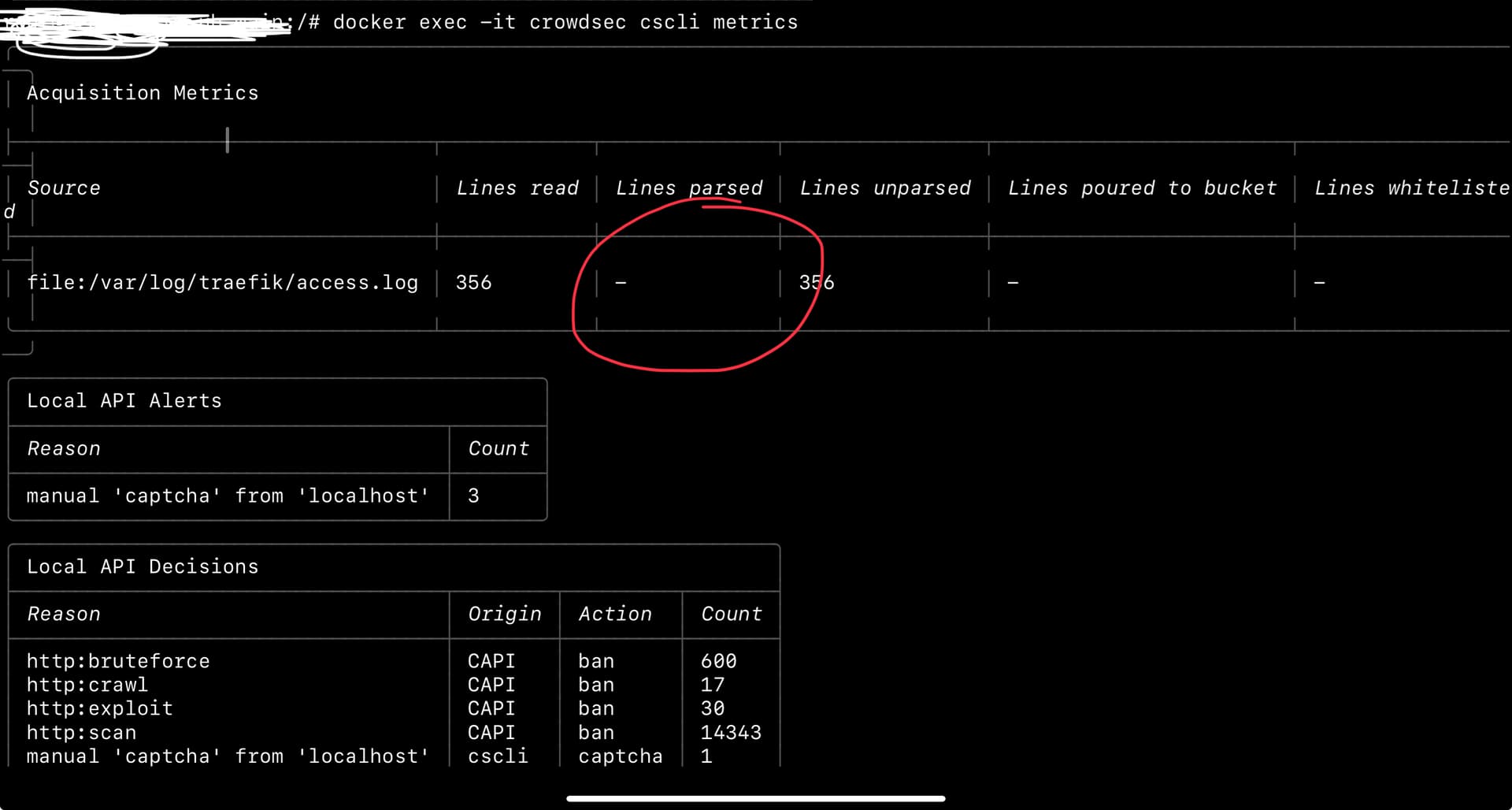

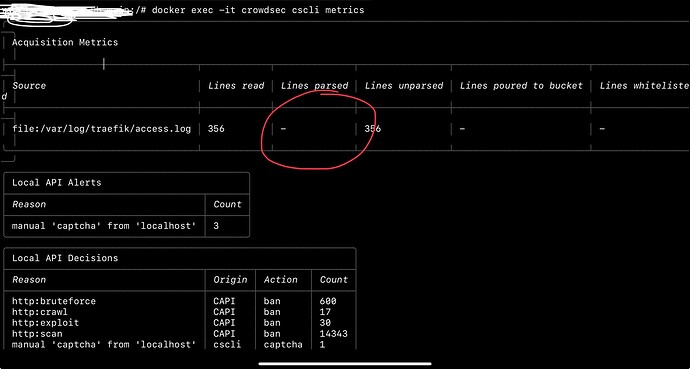

hhf, this guide is fantastic. thank you! however, based on the below, it seems that crowdsec is not correctly parsing my logs. Is that expected?

[Mattercoder]

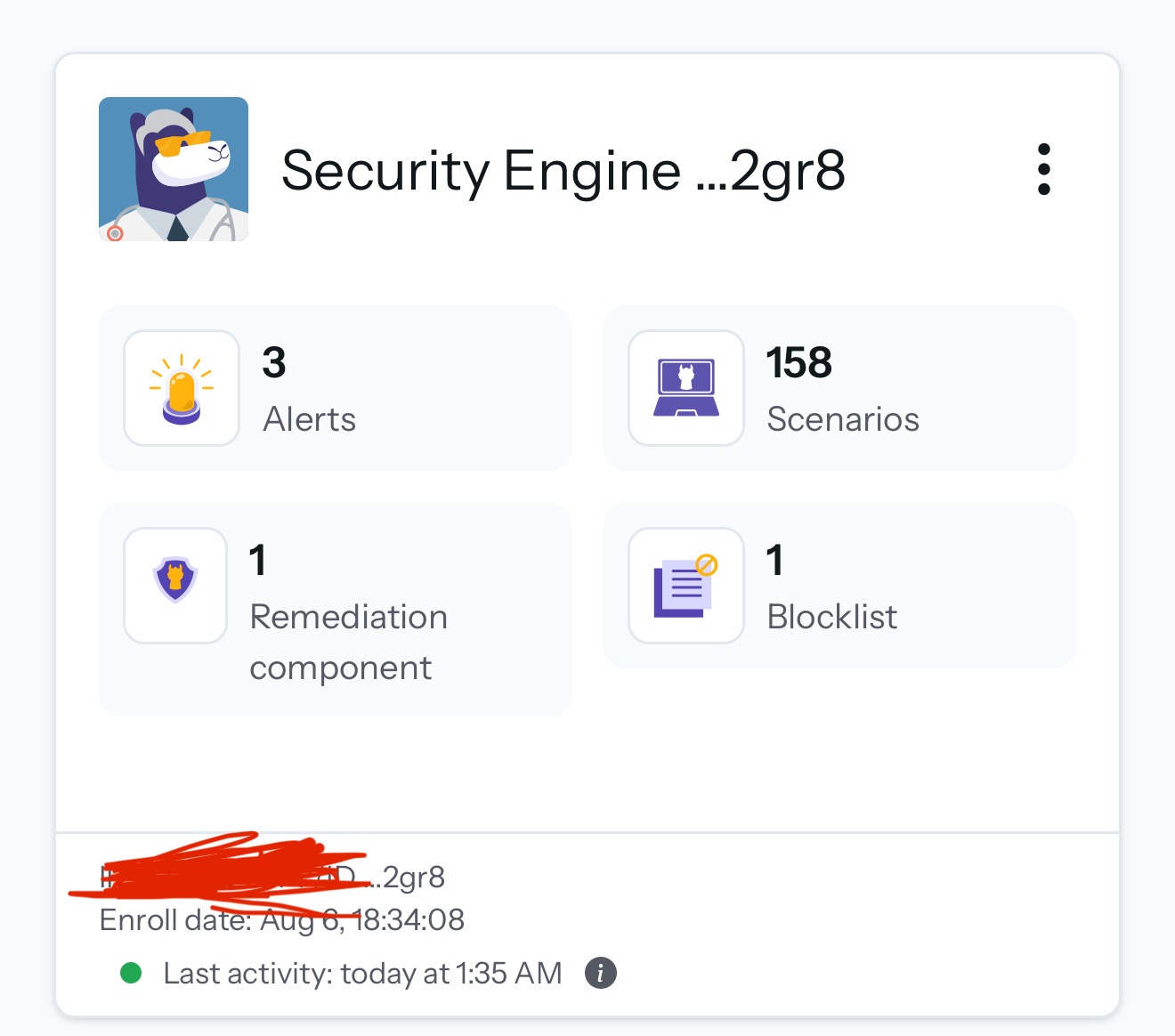

Have you accepted the enrollment on the crowdsec console?

[phneeley]

Absolutely.

[Mattercoder]

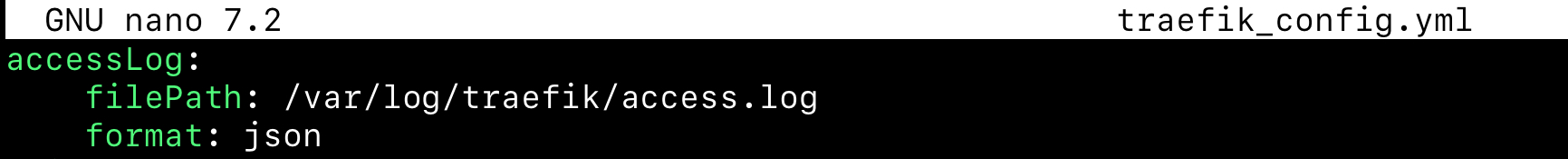

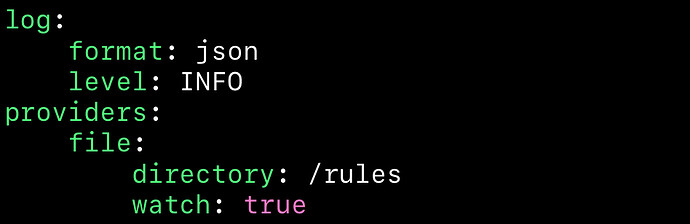

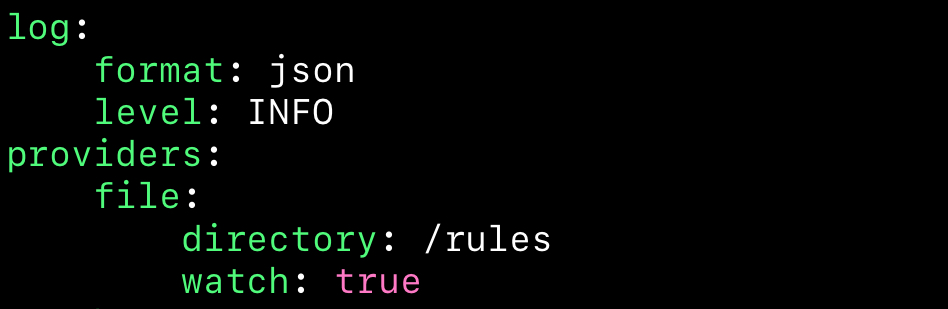

Check that your traefik logs are Json format and try this command to see that the logs are being picked up

docker exec crowdsec cscli metrics show acquisition

[phneeley]

[Mattercoder]

Try what this poster suggested

Add the crowdsec/linux to the collections

Securing Pangolin Resources with CrowdSec and the Middleware Manager - Updated Guide

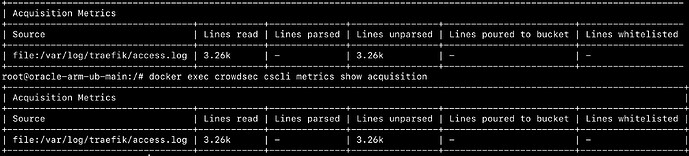

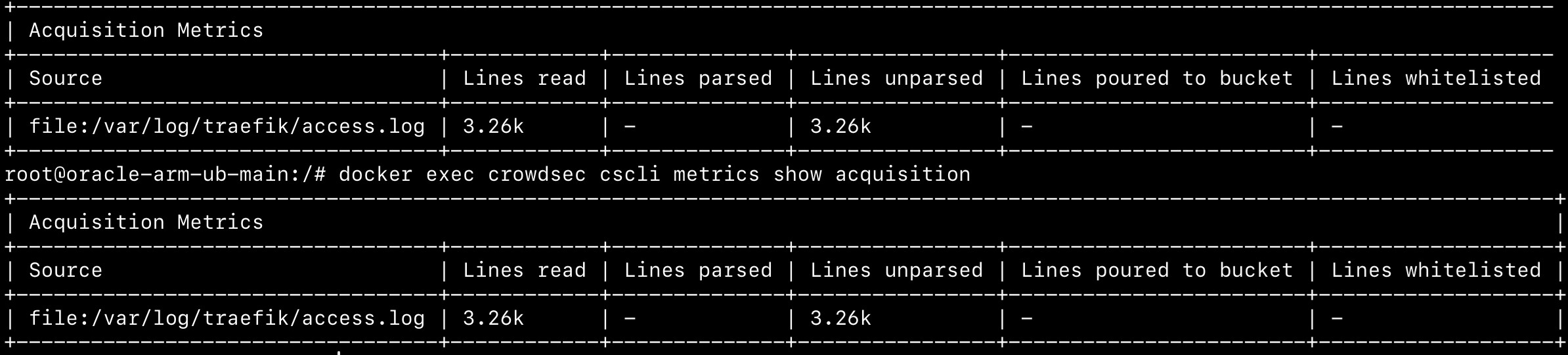

Hmm, looking at things further, I am not getting any bans either. I don’t think it’s actually parsing any logs. Manual bans work fine. │ Acquisition Metrics │ Source │ Lines read │ Lines parsed │ Lines unparsed │ Lines poured to bucket │ Lines whitelisted │ │ file:/var/log/traefik/access.log │ 1.71k │ - │ 1.71k │ - Edit: I added crowdsecurity/linux to the collections, and now all is working!

[phneeley]

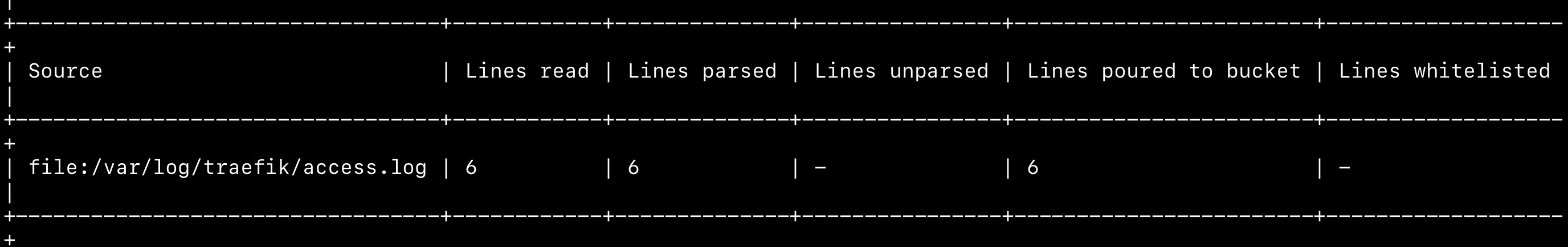

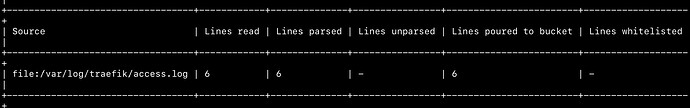

hmmm, interesting. that appears to have worked.
