Integrating Fail2Ban with Pangolin: Guide 2025

Integrating Fail2Ban with Pangolin

USE ONLY AS LAST RESORT AND IF YOU KNOW WHAT YOU ARE DOING. ITS A PAIN TO MANAGE IT

USE GEO-BLOCK and CROWDSEC MORE THAN ENOUGH

Fail2Ban is a powerful security tool that helps protect your Pangolin installation from brute force attacks and other malicious activities. This guide will walk you through integrating Fail2Ban with Pangolin using Traefik’s built-in Fail2Ban plugin.

Installation and Configuration

1. Update Traefik Configuration

First, you’ll need to modify your Traefik configuration to include the Fail2Ban plugin. Open your traefik_config.yml and add the following under the experimental plugins section:

experimental:
  plugins:
    badger:
      moduleName: "github.com/fosrl/badger"
      version: "v1.0.0-beta.3"
    fail2ban:
      moduleName: "github.com/tomMoulard/fail2ban"
      version: "v0.8.3"

2. Configure Fail2Ban Middleware

Add the Fail2Ban middleware configuration to your dynamic_config.yml:
You will have to adjust according to your requirements.
This is just a starter file to get you going.

  middlewares:
    # fail2ban configuration with proper IP forwarding
    fail2ban:
      plugin:
        fail2ban:
          rules:
            bantime: 3h                                   # Three hours is a good balance
            enabled: "true"                               # Must be string "true"
            findtime: 10m                                 # Standard window for attempts
            maxretry: "4"                                 # Four failures trigger ban
          whitelist:
            ip: ::1,127.0.0.1,100.89.137.0/20,172.16.0.0/12,10.0.0.0/8,192.168.0.0/16,your-ip/32

This configuration:

  • Whitelists internal network ranges
  • Bans IPs for 1 hour after 5 failed attempts within 10 minutes
  • Monitors both HTTP and HTTPS ports
  • Watches for authentication failures (401/403 status codes)

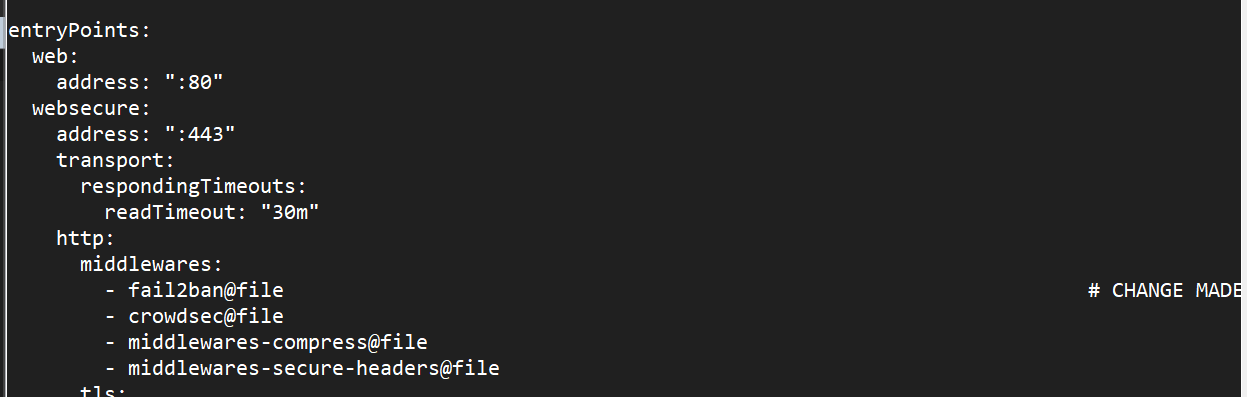

3. Apply Middleware to traefik file

Update your http configurations in traefik_config.yml to use the Fail2Ban middleware. Add fail2ban to the middlewares list.

    http:
      middlewares:
        - fail2ban@file                                                                   # CHANGE MADE HERE (BOUNCER ENABLED) !!!
        - crowdsec@file
        - middlewares-compress@file
        - middlewares-secure-headers@file

4. Enable Access Logging

Ensure Traefik’s access logging is properly configured in traefik_config.yml:

accessLog:
  filePath: "/var/log/traefik/access.log"
  format: json
  filters:
    statusCodes:
      - "200-299"  # Success codes
      - "400-499"  # Client errors
      - "500-599"  # Server errors
    retryAttempts: true
    minDuration: "100ms"  # Increased to focus on slower requests
  bufferingSize: 100      # Add buffering for better performance
  fields:
    defaultMode: drop     # Start with dropping all fields
    names:
      ClientAddr: keep
      ClientHost: keep
      RequestMethod: keep
      RequestPath: keep
      RequestProtocol: keep
      DownstreamStatus: keep
      DownstreamContentSize: keep
      Duration: keep
      ServiceName: keep
      StartUTC: keep
      TLSVersion: keep
      TLSCipher: keep
      RetryAttempts: keep
    headers:
      defaultMode: drop
      names:
        User-Agent: keep
        X-Real-Ip: keep
        X-Forwarded-For: keep
        X-Forwarded-Proto: keep
        Content-Type: keep
        Authorization: redact  # Redact sensitive information
        Cookie: redact        # Redact sensitive information

Testing the Configuration

Basic Functionality Test

  1. Generate Failed Login Attempts

    # Replace your-pangolin-domain with your actual domain
    curl -X POST https://your-pangolin-domain/api/v1/auth/login \
    -H "Content-Type: application/json" \
    -d '{"email":"test@test.com","password":"wrong"}'


    Repeat this 6 times to trigger a ban.

  2. Monitor Logs in Real-time

    tail -f ./config/traefik/logs/access.log


    Watch for 401/403 responses and subsequent connection rejections.

Testing Whitelist Configuration

  1. Test Internal Network Access

    • Attempt login failures from a whitelisted IP
    • Verify that the IP doesn’t get banned
  2. Test External IP Blocking

    • Use a non-whitelisted IP (like a VPN)
    • Verify that the IP gets banned after exceeding maxretry

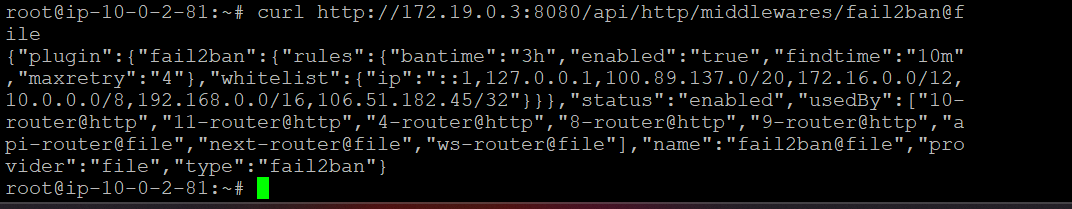

Verify Active Bans

Access Traefik’s API dashboard (if enabled in compose file):

curl http://172.19.0.3:8080/api/http/middlewares/fail2ban@file

Managing IP Blocks

How to Unblock an IP

There are several methods to unblock an IP address:

  1. Restart Traefik (Quickest method)

    docker restart traefik


    Note: This will clear ALL current bans

  2. Wait for Ban Expiration

    • Bans automatically expire after the configured bantime (default: 1 hour)

Best Practices

  1. Monitoring

    • Regularly check access logs for unusual patterns
    • Monitor the number of active bans
    • Keep track of frequently banned IPs
  2. Configuration Tuning

    • Adjust bantime, findtime, and maxretry based on your security needs
    • Keep whitelist updated with your trusted IP ranges
    • Consider increasing ban times for repeat offenders
  3. Maintenance

    • Regularly review and update whitelist entries
    • Monitor log file sizes and implement log rotation
    • Keep Traefik and plugin versions updated

Troubleshooting

Common Issues

  1. Bans Not Working

    • Verify middleware is properly configured in routers
    • Check if IP is in whitelist
    • Ensure logs are being written correctly
  2. Legitimate Users Getting Banned

    • Review maxretry and findtime settings
    • Check whitelist configuration
    • Consider implementing rate limiting instead of outright bans
  3. Configuration Not Taking Effect

    • Verify Traefik configuration syntax
    • Check Traefik logs for configuration errors
    • Ensure middleware is properly linked to routers

Debug Mode

To enable more detailed logging, update the log level in traefik_config.yml:

log:
  level: "DEBUG"

Remember to return it to “INFO” in production.

Security Considerations

  • Don’t set ban times too short (makes the protection ineffective)
  • Don’t set retry attempts too high (makes the protection ineffective)
  • Keep your whitelist minimal and regularly reviewed
  • Monitor logs for signs of evasion attempts
  • Consider implementing additional security measures like rate limiting

These configurations and practices will help secure your Pangolin installation against unauthorized access attempts while maintaining usability for legitimate users.

What if I have a dynamic IP? your-ip/32 doesn’t seem to work long-term in a dynamic-ip scenario, right? Seems like I’ll be auto-banned every time my ip4 rotates?

yes, you are right. fail2ban is more complicated. and it should be dployed on auth error only. false positive are really annoying

How would one go about deploying it “on auth error only”?

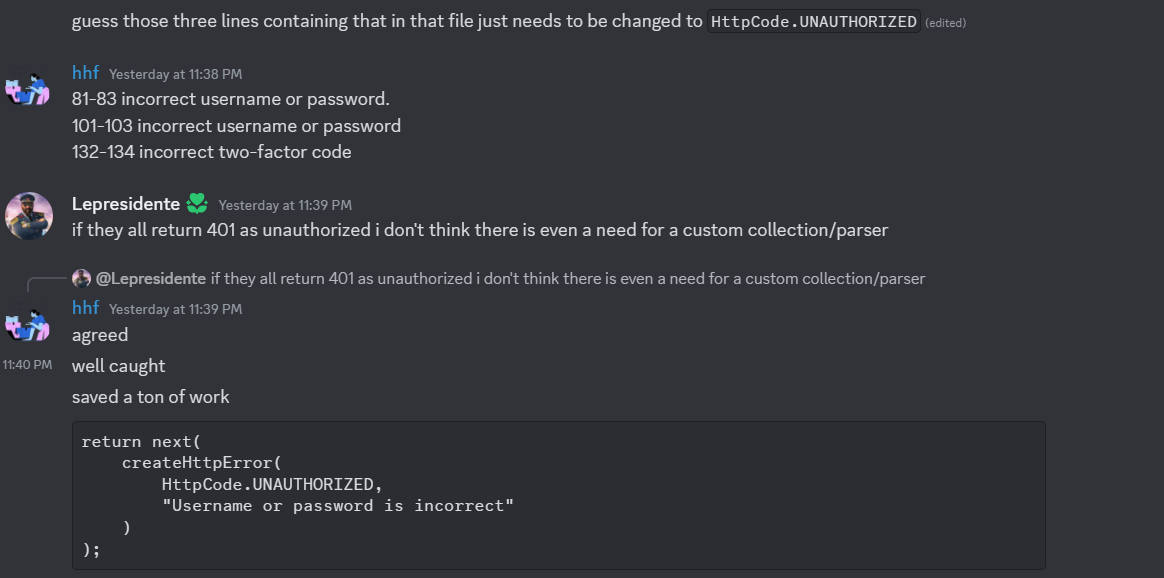

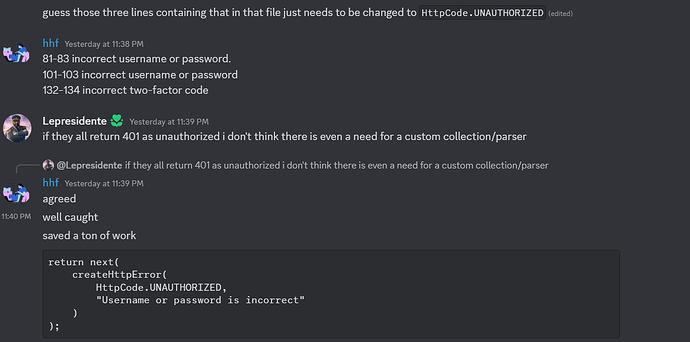

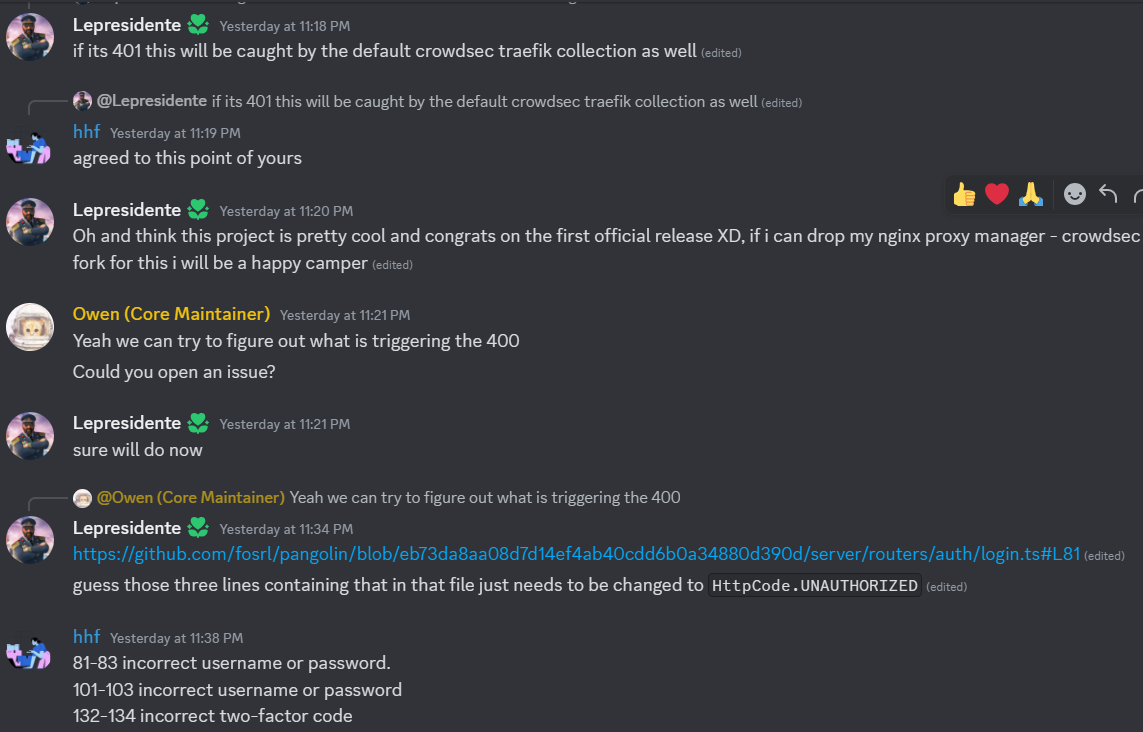

there is small bug in pangolin. developer are looking at it.


1 Like

Solved in the latest updated. pangolin 1.0.1

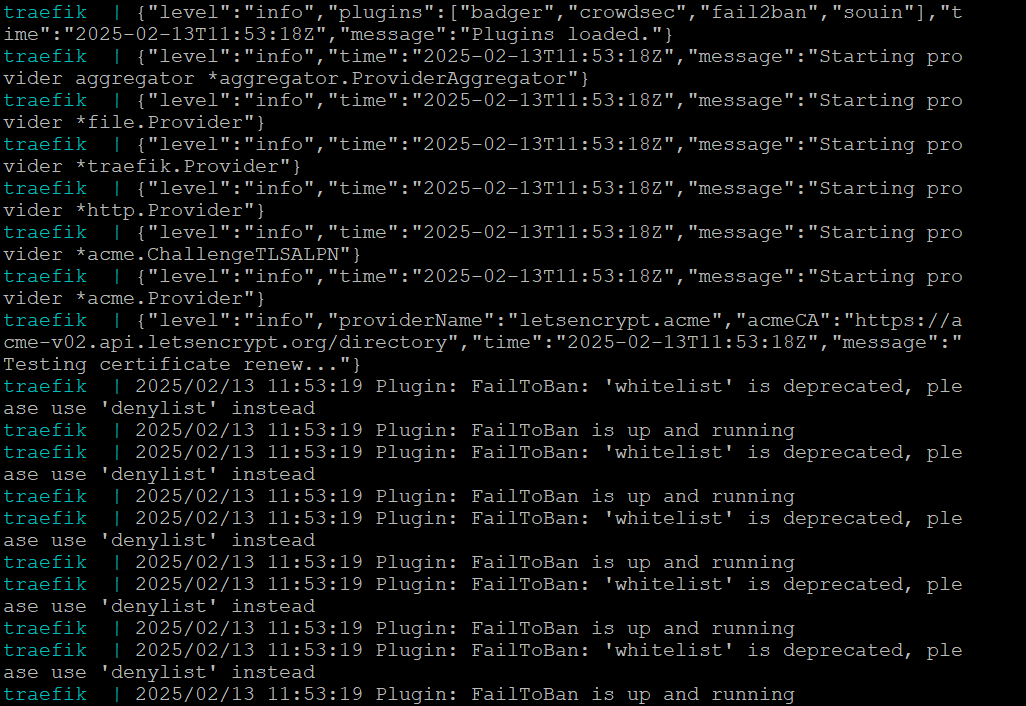

2025/03/11 15:39:53 Plugin: FailToBan is up and running :raising_hands:

Awesome. Have fun with the project.
