I was curious, why are you doing the UFW rules if Docker is exposing the ports? Docker manipulates the iptables rules from what I understand which I think overrides UFW. Like I have UFW denying everything besides SSH and it all seems to work okay.
I haven’t been doing this very long so just wanted to make sure I wasn’t missing something.
This is correct. Docker uses its own iptable chains. They are connected to the nat table and bypass the INPUT chain. Not sure if ufw actually does something clever about it. I use raw iptables for my firewall
I prefer iptables, but saying that
how they interact:
when UFW is enabled, it translates user-friendly UFW commands into iptables rules that are applied to the system. essentially, UFW acts as a layer on top of iptables, making firewall management easier for users.
superseding behavior:
when both UFW and iptables are active (which is not a recommended setup), UFWs rules will take precedence because UFW is managing the firewall settings that are eventually passed to iptables. Its best practice to use either UFW or iptables, not both, to avoid conflicts and confusion.
what is port 9000 used for?
i what relation we are talking here??
Not needed. ufw port 9000. I think I was experimenting with authentik (which needed port 9000) when I wrote this.
Used the guide and almost everything works so far. Thank you for that!
If I try to apply the ipwhitelist middleware it doesn’t work and in my Traefik Logs I get the following warning:
WRN Middleware “ip-whitelist@file” of type IPWhiteList is deprecated, please use IPAllowList instead.
Does anyone else have the same issue? If I apply the ipallowlist middleware, everything works as expected.
its for old traefik installation.
ipWhiteList middleware in traefik was renamed to ipAllowList as part of the v2.0 release in October 2019 and now no longer works for v3 if you are using that

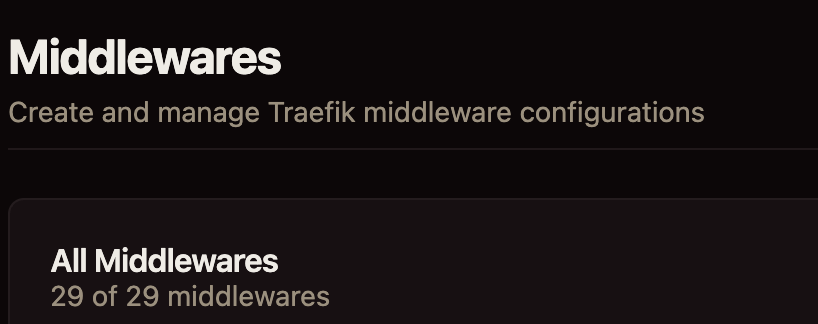

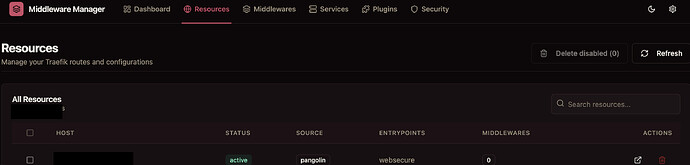

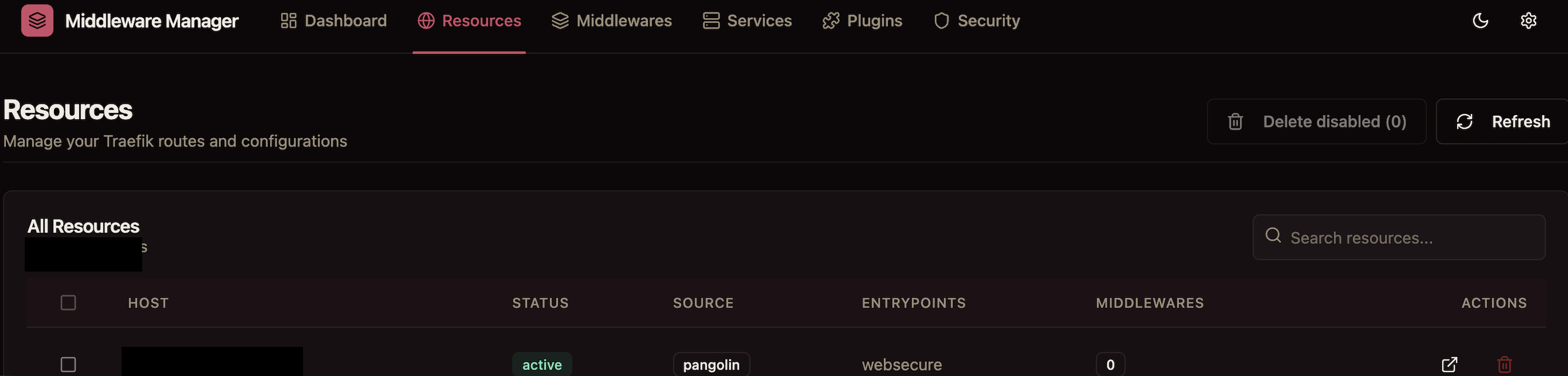

Under resources, zero middlewares are recognized. However under middlewares, 29 are recognized. Do I need add middlewares to resources or is it just displaying incorrect information?
name: pangolin
networks:
default:
driver: bridge
enable_ipv6: true
name: pangolin
ipam:
config:
- subnet: 172.20.0.0/16
services:
crowdsec:
command: -t
container_name: crowdsec
environment:
COLLECTIONS: crowdsecurity/traefik crowdsecurity/appsec-virtual-patching crowdsecurity/appsec-generic-rules
ENROLL_INSTANCE_NAME: pangolin-crowdsec
ENROLL_TAGS: docker
GID: "1000"
PARSERS: crowdsecurity/whitelists
GEOAPIFY_API_KEY:
DISCORD_WEBHOOK_ID:
DISCORD_WEBHOOK_TOKEN:
CROWDSEC_CTI_API_KEY:
healthcheck:
interval: 10s
retries: 3
start_period: 30s
test:
- CMD
- cscli
- lapi
- status
timeout: 5s
image: docker.io/crowdsecurity/crowdsec:latest
labels:
- traefik.enable=false
networks:
default:
ipv4_address: 172.20.0.47
ports:
- 6060:6060
restart: unless-stopped
volumes:
- ./config/crowdsec:/etc/crowdsec
- ./config/crowdsec/db:/var/lib/crowdsec/data
- ./config/traefik/logs:/var/log/traefik
gerbil:
cap_add:
- NET_ADMIN
- SYS_MODULE
command:
- --reachableAt=http://gerbil:3004
- --generateAndSaveKeyTo=/var/config/key
- --remoteConfig=http://pangolin:3001/api/v1/
container_name: gerbil
depends_on:
pangolin:
condition: service_healthy
image: docker.io/fosrl/gerbil:1.3.0
ports:
- 51820:51820/udp
- 21820:21820/udp
- 443:443
- 80:80
restart: unless-stopped
networks:
default:
ipv4_address: 172.20.0.48
volumes:
- ./config/:/var/config
pangolin:
container_name: pangolin
healthcheck:
interval: 10s
retries: 15
test:
- CMD
- curl
- -f
- http://localhost:3001/api/v1/
timeout: 10s
image: docker.io/fosrl/pangolin:ee-1.16.2
restart: unless-stopped
networks:
default:
ipv4_address: 172.20.0.49
volumes:
- ./config:/app/config
traefik:
command:
- --configFile=/etc/traefik/traefik_config.yml
container_name: traefik
depends_on:
crowdsec:
condition: service_healthy
pangolin:
condition: service_healthy
image: docker.io/traefik:v3.6
network_mode: service:gerbil
restart: unless-stopped
volumes:
- ./config/traefik:/etc/traefik
- ./config/letsencrypt:/letsencrypt
- ./config/traefik/logs:/var/log/traefik
middleware-manager:
image: hhftechnology/middleware-manager:dev
container_name: middleware-manager
restart: unless-stopped
volumes:
- ./data:/data
- ./middleware-manager:/app/config
- ./config/traefik:/etc/traefik
- ./middleware-manager/templates.yaml:/app/config/templates.yaml # Optional custom middleware templates
- ./middleware-manager/templates_services.yaml:/app/config/templates_services.yaml # Optional custom service templates
environment:
- TRAEFIK_CONF_DIR=/conf
- DB_PATH=/data/middleware.db
- PORT=3456
- TRAEFIK_STATIC_CONFIG_PATH=/etc/traefik/traefik_config.yml
- ACTIVE_DATA_SOURCE=pangolin
- PANGOLIN_API_URL=http://pangolin:3001/api/v1
depends_on:
pangolin:
condition: service_healthy
networks:
default:
ipv4_address: 172.20.0.50 # ? your fixed IP
healthcheck:
interval: 10s
retries: 15
test:
- CMD
- curl
- -f
- http://localhost:3456/api/traefik-config
timeout: 10s
ports:
- "3456:3456"
error-pages:
image: ghcr.io/tarampampam/error-pages:3
container_name: error-pages
restart: unless-stopped
environment:
TEMPLATE_NAME: connection # Choose from available templates: ghost, connection, shuffle, etc.
networks:
default:
ipv4_address: 172.20.0.51
labels:
traefik.enable: true
traefik.yml
accessLog:
bufferingSize: 100
fields:
defaultMode: drop
headers:
defaultMode: drop
names:
Authorization: redact
Content-Type: keep
Cookie: redact
User-Agent: keep
X-Forwarded-For: keep
X-Forwarded-Proto: keep
X-Real-Ip: keep
names:
ClientAddr: keep
ClientHost: keep
DownstreamContentSize: keep
DownstreamStatus: keep
Duration: keep
RequestMethod: keep
RequestPath: keep
RequestProtocol: keep
RetryAttempts: keep
ServiceName: keep
StartUTC: keep
TLSCipher: keep
TLSVersion: keep
filePath: /var/log/traefik/access.log
filters:
minDuration: 100ms
retryAttempts: true
statusCodes:
- 200-299
- 400-499
- 500-599
format: json
api:
dashboard: true
insecure: true
certificatesResolvers:
letsencrypt:
acme:
caServer: https://acme-v02.api.letsencrypt.org/directory
email: discourse@hhf.technology
httpChallenge:
entryPoint: web
storage: /letsencrypt/acme.json
entryPoints:
web:
address: :80
websecure:
address: :443
http:
encodedCharacters:
allowEncodedQuestionMark: true
allowEncodedSlash: true
tls:
certResolver: letsencrypt
transport:
respondingTimeouts:
readTimeout: 30m
experimental:
plugins:
badger:
moduleName: github.com/fosrl/badger
version: v1.3.1
crowdsec:
moduleName: github.com/maxlerebourg/crowdsec-bouncer-traefik-plugin
version: v1.4.4
mtlswhitelist:
moduleName: github.com/smerschjohann/mtlswhitelist
version: v0.4.2
log:
compress: true
format: json
level: INFO
maxAge: 3
maxBackups: 3
maxSize: 100
ping:
entryPoint: web
providers:
file:
filename: /etc/traefik/dynamic_config.yml
http:
endpoint: http://172.20.0.50:3456/api/v1/traefik-config
pollInterval: 5s
serversTransport:
insecureSkipVerify: true
then you can use template.yml to load your middleware
