Guide to Deploy Pangolin on Flatcar OS

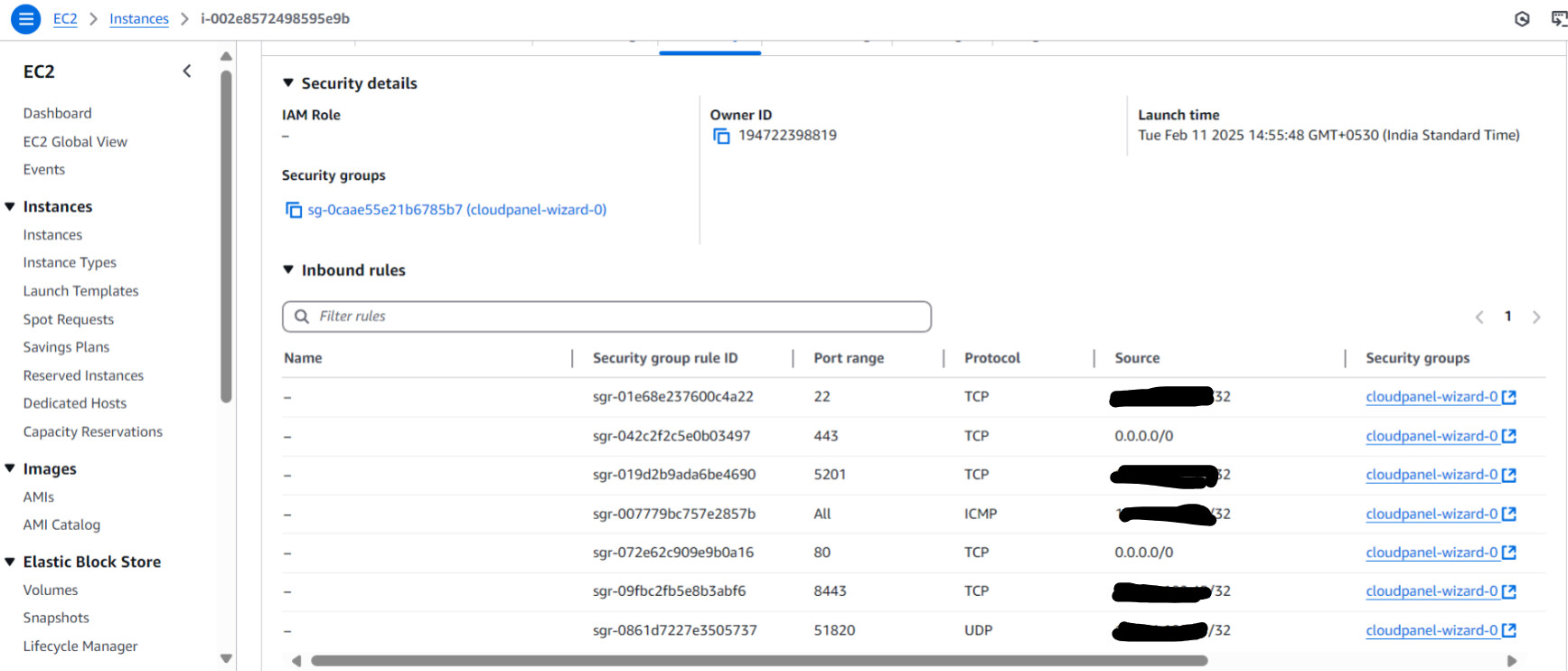

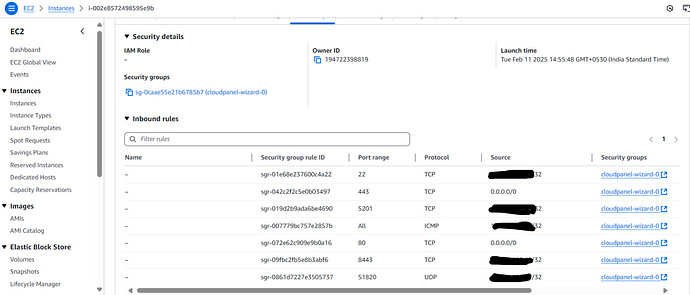

As a prerequisite to deployment, confirm the following: (1) all required network ports are open and accessible (TCP 80, TCP 443, UDP 51820); and (2) the DNS records for your domain correctly resolve to the public IP address of your Flatcar VPS.

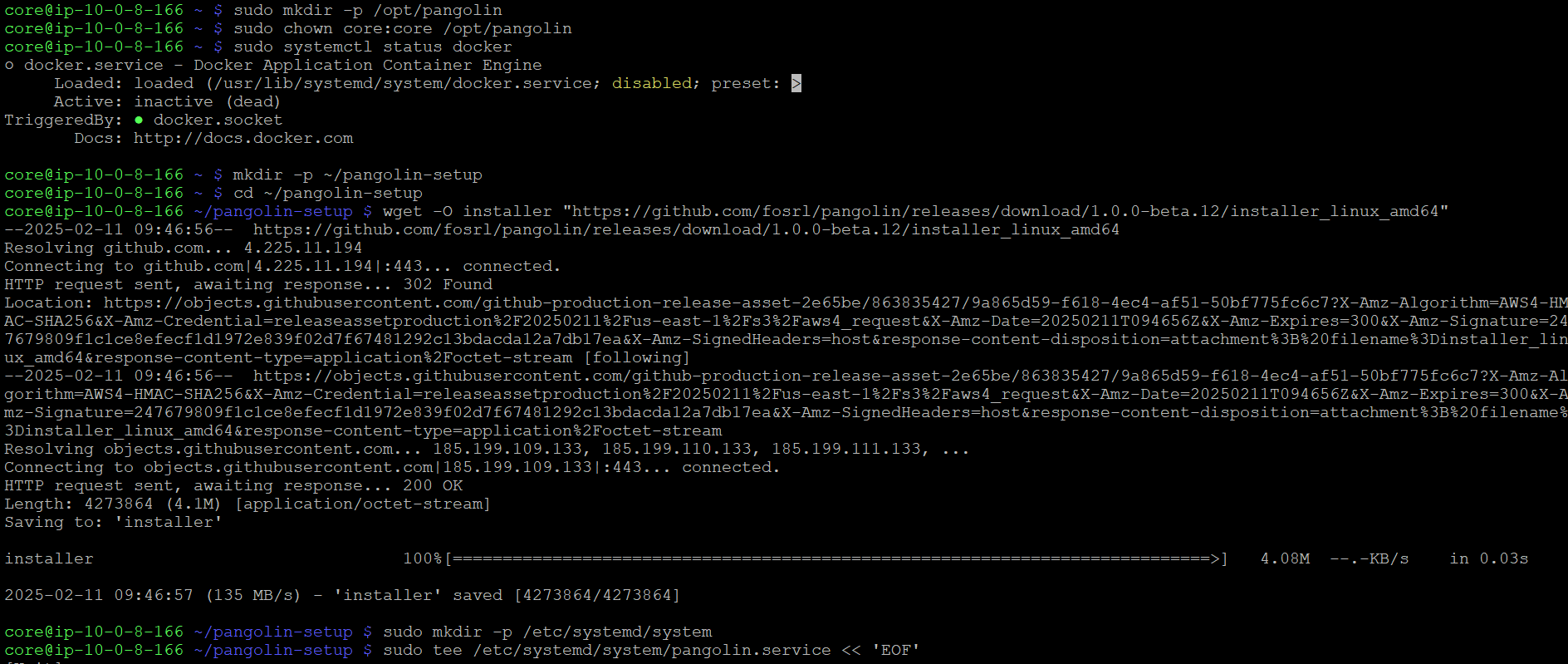

1. Initial Server Setup

First, SSH into your Flatcar OS server:

ssh core@your-server-ip

Create a persistent directory for Pangolin data since Flatcar OS uses an immutable filesystem:

sudo mkdir -p /opt/pangolin
sudo chown core:core /opt/pangolin
cd /opt/pangolin

2. Set Up Docker Compose

Create a Docker Compose wrapper script that ensures compatibility with Flatcar OS:

sudo mkdir -p /opt/bin
sudo tee /opt/bin/docker-compose << 'EOF'
#!/bin/bash
docker run --rm \
    -v /var/run/docker.sock:/var/run/docker.sock \
    -v "$PWD:$PWD" \
    -w="$PWD" \
    docker/compose:1.29.2 "$@"
EOF

sudo chmod +x /opt/bin/docker-compose

3. Download the Pangolin Installer

Download the Pangolin installer:

wget -O installer "https://github.com/fosrl/pangolin/releases/download/1.0.0-beta.14/installer_linux_amd64"
chmod +x ./installer

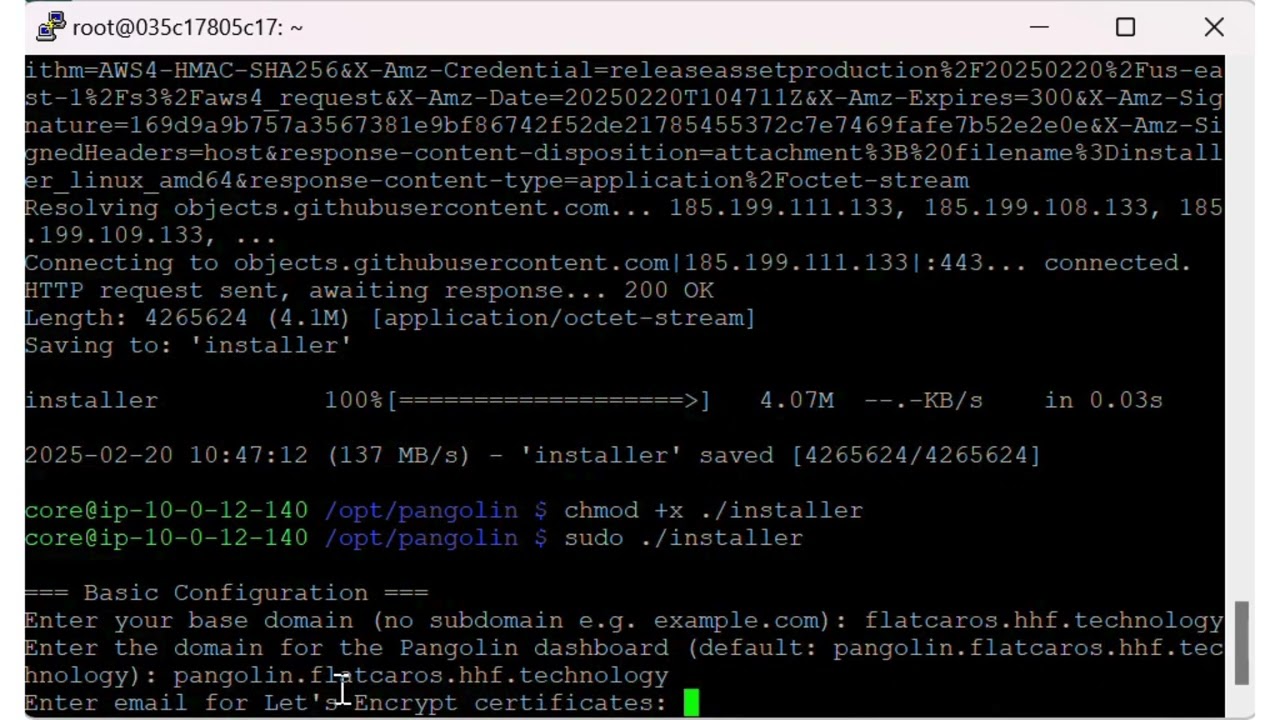

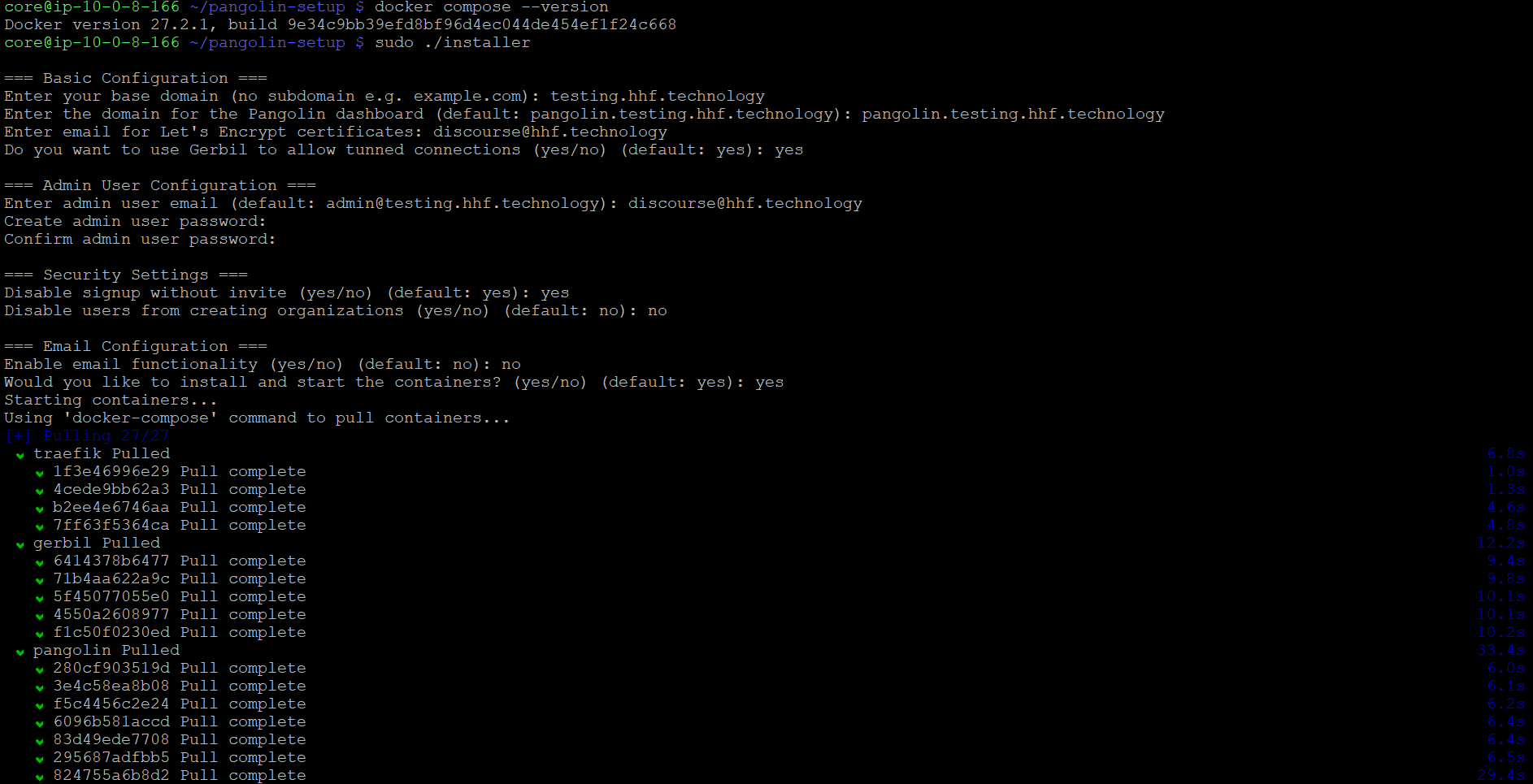

4. Run the Installer

Run the installer with sudo:

sudo ./installer

When prompted, provide the following information:

  • Your base domain name (e.g., example.com)
  • Dashboard domain name (e.g., proxy.example.com)
  • Let’s Encrypt email address
  • Choose whether to install Gerbil for tunneling
  • Set up admin user credentials
  • Configure security settings
  • Set up email configuration (optional)

5. Create a Systemd Service

Create a systemd service file to manage Pangolin:

sudo mkdir -p /etc/systemd/system
sudo tee /etc/systemd/system/pangolin.service << 'EOF'
[Unit]
Description=Pangolin Service
After=docker.service
Requires=docker.service

[Service]
Type=simple
User=root
WorkingDirectory=/opt/pangolin
ExecStartPre=/bin/sleep 5
ExecStart=/opt/bin/docker-compose up
ExecStop=/opt/bin/docker-compose down
Restart=on-failure
RestartSec=10

[Install]
WantedBy=multi-user.target
EOF

6. Start Pangolin Service

Enable and start the Pangolin service:

sudo systemctl daemon-reload
sudo systemctl enable pangolin
sudo systemctl start pangolin

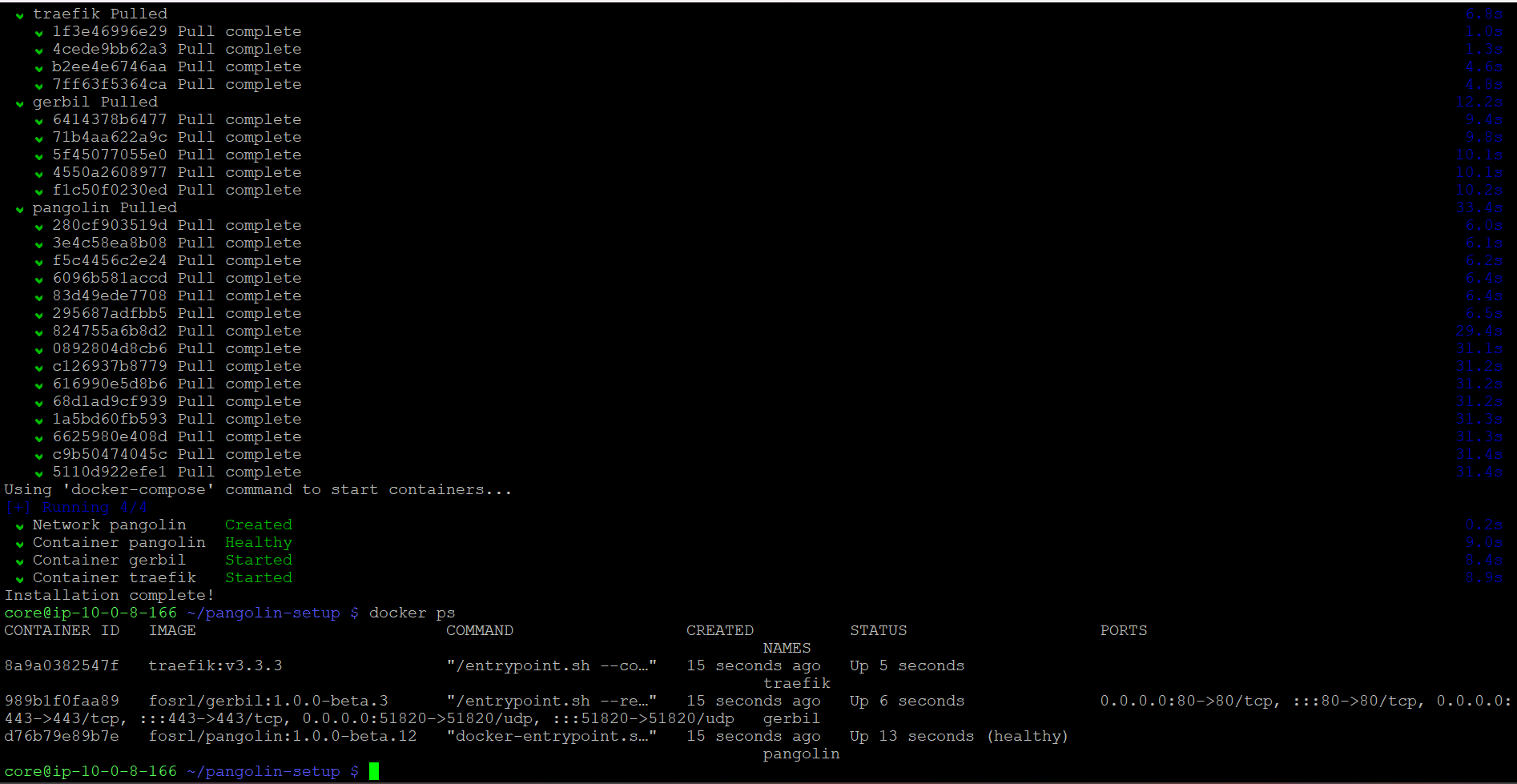

7. Verify Installation

Check if all containers are running:

cd /opt/pangolin
/opt/bin/docker-compose ps

You should see containers for:

  • Pangolin
  • Traefik
  • Gerbil (if you chose to install it)

8. Monitor Logs

You can monitor the logs using:

cd /opt/pangolin
/opt/bin/docker-compose logs -f

9. Access the Dashboard

Once everything is running, access your Pangolin dashboard at the domain you configured (e.g., https://proxy.example.com).

Troubleshooting Tips

If you encounter any issues:

  1. Check the container logs:

    cd /opt/pangolin
/opt/bin/docker-compose logs

  2. Verify all ports are accessible:

    sudo ss -tulpn

  3. Check systemd service status:

    sudo systemctl status pangolin

  4. If the service fails to start, try starting Docker Compose manually:

    cd /opt/pangolin
/opt/bin/docker-compose up -d

  5. Ensure all configuration files exist:

    ls -la /opt/pangolin/config/

Remember that Flatcar OS uses an immutable file system, so all persistent data should be stored in the /opt directory.
