Enhanced Cyber Threat Intelligence with CrowdSec, VictoriaMetrics & Grafana for Pangolin Setups

Guide Version: 1.0
Last Updated: Friday, May 16, 2025

Introduction:
This guide will walk you through integrating VictoriaMetrics with your existing CrowdSec instance (as part of a “Pangolin-like” Docker setup) and visualizing rich threat intelligence data in Grafana. We’ll leverage CrowdSec’s HTTP notifications to send detailed alert data to VictoriaMetrics, which Grafana will then use as a data source. This provides a powerful, self-hosted alternative to CrowdSec’s default metrics, offering deeper insights into the threats your services are facing, including geolocation, ASN information, and Traefik router details.

This guide assumes you’re using a setup similar to the “Pangolin” configuration, which typically involves:

  • A main docker-compose.yml for services like Traefik, CrowdSec, and other applications.
  • A separate docker-compose-monitoring.yml for Prometheus, Grafana, etc.
  • Both compose setups are linked via a shared external Docker network (e.g., pangolin).
  • CrowdSec is configured to monitor Traefik logs.

Prerequisites:

  1. A working “Pangolin-like” Docker environment with:
    • CrowdSec running and configured (especially for Traefik logs).
    • Grafana running.
    • Both CrowdSec and Grafana (and soon VictoriaMetrics) connected to the same shared Docker network (referred to as pangolin in this guide).
    • Your main services defined in a docker-compose.yml (e.g., located at ~/Pangolin/docker-compose.yml).
    • Your monitoring services defined in docker-compose-monitoring.yml (e.g., at ~/Pangolin/docker-compose-monitoring.yml).
    • A directory structure like ~/Pangolin/config/crowdsec/ for CrowdSec configurations.
  2. docker and docker-compose installed on your host.
  3. Basic familiarity with editing YAML files and running Docker commands.

Overview of Changes:

  1. Add VictoriaMetrics as a new service in your docker-compose-monitoring.yml.
  2. Create a new CrowdSec HTTP notification handler to format and send alert data.
  3. Update your CrowdSec profiles to use this new notification handler.
  4. Configure Grafana to use VictoriaMetrics as a data source.
  5. Import a pre-built Grafana dashboard (ID 21689) to visualize the data.

Step-by-Step Setup Process:

Step 1: Prepare Directory for VictoriaMetrics Data
VictoriaMetrics needs a persistent volume to store its time-series data. We’ll create a directory for this within your existing configuration structure.
On your Docker host, run:

mkdir -p ~/Pangolin/config/victoriametrics_data

Step 2: Add VictoriaMetrics to Your Monitoring Docker Compose File
Edit your docker-compose-monitoring.yml file (e.g., ~/Pangolin/docker-compose-monitoring.yml) and add the following service definition for victoriametrics. Place it alongside your existing prometheus, grafana services:

networks:
  pangolin: # Ensure this matches your existing external network name
    external: true

services:
  # ... your existing prometheus, grafana, node-exporter, etc. services ...

  victoriametrics: # <-- NEW SERVICE DEFINITION STARTS HERE
    image: victoriametrics/victoria-metrics:latest
    container_name: victoriametrics
    restart: unless-stopped
    expose: # Exposes port 8428 only to other containers on the 'pangolin' network
      - "8428"
    # If you need to test VictoriaMetrics directly from your host (e.g., with curl),
    # you can temporarily change 'expose:' to 'ports: ["8428:8428"]'
    volumes:
      - ./config/victoriametrics_data:/victoria-metrics-data # Maps to ~/Pangolin/config/victoriametrics_data
    command:
      - '--storageDataPath=/victoria-metrics-data'
      - '--httpListenAddr=:8428'      # Listen on all interfaces within the container on port 8428
      - '--retentionPeriod=3'        # Example: Retain data for 3 months. Adjust as needed (e.g., "12m" for 12 months).
    networks:
      - pangolin                   # Connect to your shared network
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "3"
  # <-- NEW SERVICE DEFINITION ENDS HERE

  # prometheus:
  #   ... (rest of your prometheus config) ...
  # grafana:
  #   ... (rest of your grafana config) ...
  • expose: - "8428": This makes VictoriaMetrics available to other containers on the pangolin network (like CrowdSec and Grafana) via http://victoriametrics:8428.
  • volumes: The path ./config/victoriametrics_data is relative to the location of your docker-compose-monitoring.yml.
  • retentionPeriod: Adjust this based on how long you want to keep the detailed alert data.

Step 3: Create the CrowdSec HTTP Notification Handler
This file tells CrowdSec how to format and where to send the alert data.
Create a new file named http_victoriametrics.yaml in your CrowdSec notifications directory on the host:
Path: ~/Pangolin/config/crowdsec/notifications/http_victoriametrics.yaml

type: http
name: http_victoriametrics
log_level: info # Change to 'debug' for more verbose logging during troubleshooting
format: >
  {{- range $Alert := . -}}
  {{- $traefikRouters := GetMeta . "traefik_router_name" -}}
  {{- $instanceName := env "ENROLL_INSTANCE_NAME" -}}
  {{- if not $instanceName -}}
    {{- $instanceName = "pangolin-crowdsec-default" -}}
  {{- end -}}
  {{- range .Decisions -}}
  {"metric":{"__name__":"cs_lapi_decision","instance":"{{$instanceName}}","country":"{{$Alert.Source.Cn}}","asname":"{{$Alert.Source.AsName}}","asnumber":"{{$Alert.Source.AsNumber}}","latitude":"{{$Alert.Source.Latitude}}","longitude":"{{$Alert.Source.Longitude}}","iprange":"{{$Alert.Source.Range}}","scenario":"{{.Scenario}}","type":"{{.Type}}","duration":"{{.Duration}}","scope":"{{.Scope}}","ip":"{{.Value}}","traefik_routers":{{ printf "%q" ($traefikRouters | uniq | join ",")}}},"values": [1],"timestamps":[{{now.UTC.UnixEpoch}}000]}
  {{- end }}
  {{- end -}}
url: http://victoriametrics:8428/api/v1/import
method: POST
headers:
  Content-Type: "application/json"
  #Authorization: "<SECRET-TOKEN>" # Uncomment and configure if you set up vmauth for VictoriaMetrics later
  • instance: This uses the ENROLL_INSTANCE_NAME environment variable from your CrowdSec Docker Compose setup, ensuring a meaningful instance tag.
  • traefik_routers: This extracts the Traefik router name if available in the alert metadata (useful if CrowdSec is parsing Traefik logs).
  • url: Points to the VictoriaMetrics service on your shared Docker network.

Step 4: Update CrowdSec Profiles
Now, tell CrowdSec to use this new notification handler. Edit your existing CrowdSec profiles file:
Path: ~/Pangolin/config/crowdsec/profiles.yaml

Add http_victoriametrics to the notifications: list within the profiles whose alerts you want to send to VictoriaMetrics. For example:

# ... (other profiles like captcha_remediation if you have them) ...
# ---
name: default_ip_remediation # Example profile
filters:
 - Alert.Remediation == true && Alert.GetScope() == "Ip"
decisions:
 - type: ban
   duration: 4h
notifications:
 - gotify                   # Your existing notification
 - discord                  # Your existing notification
 - http_victoriametrics     # <-- ADD THIS LINE
on_success: break

---
name: default_range_remediation # Example profile
filters:
 - Alert.Remediation == true && Alert.GetScope() == "Range"
decisions:
 - type: ban
   duration: 4h
notifications:
 - gotify                   # Your existing notification
 - discord                  # Your existing notification
 - http_victoriametrics     # <-- ADD THIS LINE
on_success: break

# Add to other profiles as needed
  • Review all profiles in your profiles.yaml and add http_victoriametrics where appropriate.

Step 5: Restart Services
Apply the changes:

  1. Restart CrowdSec: Navigate to the directory containing your main docker-compose.yml (e.g., ~/Pangolin/) and run:

    cd ~/Pangolin
    docker-compose restart crowdsec


    Check CrowdSec logs for errors: docker-compose logs -f crowdsec

  2. Start/Update Monitoring Stack (including VictoriaMetrics): Navigate to the directory containing docker-compose-monitoring.yml (e.g., ~/Pangolin/) and run:

    cd ~/Pangolin
    docker-compose -f docker-compose-monitoring.yml up -d --remove-orphans


    Check VictoriaMetrics logs: docker-compose -f docker-compose-monitoring.yml logs -f victoriametrics

Step 6: Verify CrowdSec GeoIP Parser
For map visualizations and country data, ensure CrowdSec’s GeoIP enrichment is active:

# Assuming your CrowdSec container is named 'crowdsec'
docker exec -it crowdsec cscli parsers install crowdsecurity/geoip-enrich
docker exec -it crowdsec cscli collections install crowdsecurity/geoip # Recommended for modern GeoIP handling
docker exec -it crowdsec cscli hub update
docker exec -it crowdsec cscli hub upgrade

After running these, restart CrowdSec again:

cd ~/Pangolin
docker-compose restart crowdsec

Step 7: Configure Grafana

  1. Add VictoriaMetrics as a Data Source:

    • Open your Grafana instance in a web browser.
    • Navigate to Connections (plug icon in the side menu) -> Data Sources.
    • Click “Add new data source”.
    • Search for and select “Prometheus” (VictoriaMetrics is Prometheus-compatible).
    • Name: Enter a descriptive name, e.g., VictoriaMetrics-CrowdSec.
    • URL: http://victoriametrics:8428
    • Leave other settings as default for now.
    • Click “Save & Test”. You should see a success message (“Data source is working”).

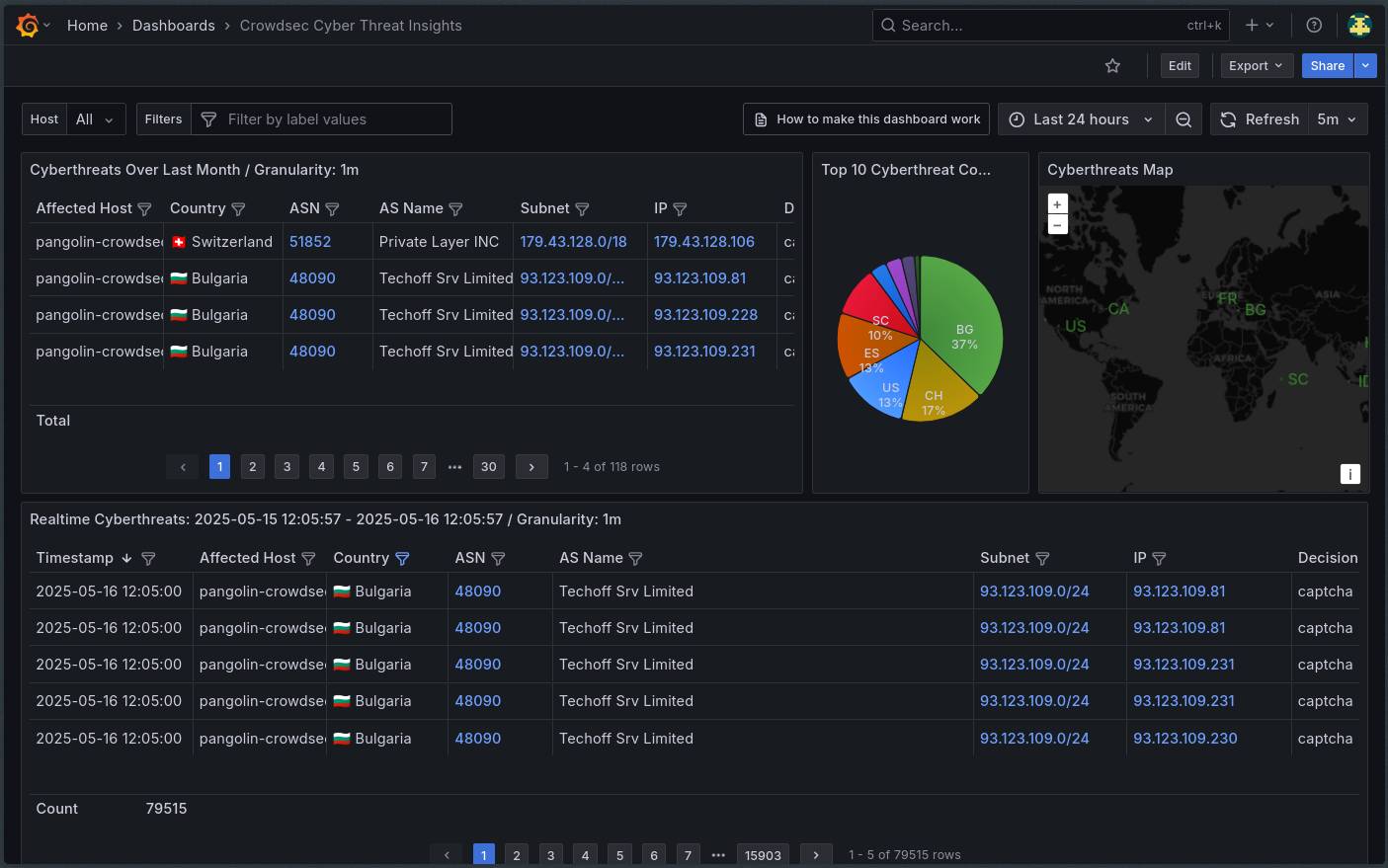

  2. Import the Grafana Dashboard:

    • Navigate to Dashboards (four squares icon in the side menu).
    • Click “New” (top right button) -> “Import”.
    • In the “Import via grafana.com” field, enter the Dashboard ID: 21689.
    • Click “Load”.
    • On the next page, you can customize the dashboard name if desired.
    • Under “Data Sources” (or similar options at the bottom), ensure you select your newly created VictoriaMetrics-CrowdSec data source from the dropdown list(s).
    • Click “Import”.

Step 8: Verify and Test

  1. Generate Test Alerts: If you don’t have recent CrowdSec activity, generate a test decision:
    docker exec -it crowdsec cscli decisions add --ip 1.2.3.4 --reason test-dashboard --duration 10m

  2. Check CrowdSec Logs:
    cd ~/Pangolin
    docker-compose logs --tail 50 -f crowdsec

    Look for logs from the http_victoriametrics plugin indicating it’s sending data (especially if log_level is debug in the notification template). There should be no template errors.
  3. Query VictoriaMetrics Directly (Optional):
    You can quickly check if data is arriving in VictoriaMetrics from another container on the pangolin network (e.g., Grafana, if it has curl):
    docker exec -it grafana curl "http://victoriametrics:8428/api/v1/query?query=cs_lapi_decision"

    You should see a JSON response. If result is not empty, data is there.
  4. View the Grafana Dashboard: Open the imported “CrowdSec Cyber Threat Insights” dashboard in Grafana. Adjust the time range (e.g., “Last 15 minutes”) to see recent events. Data should start populating the panels.

Troubleshooting Common Issues:

  • No data in Grafana:
    • Verify CrowdSec is generating alerts/decisions.
    • Check CrowdSec logs for any errors from the http_victoriametrics plugin. The env template error we troubleshooted earlier is a common pitfall if the template is incorrect.
    • Ensure VictoriaMetrics is running and accessible (docker exec -it grafana ping victoriametrics).
    • Confirm the correct data source is selected in the Grafana dashboard panels/variables.
    • Check the Grafana time range.
  • Map not showing data: Ensure the GeoIP steps were completed and CrowdSec restarted.
  • Template Errors in CrowdSec logs: Double-check the syntax of your http_victoriametrics.yaml file against the example provided, especially the Go template section.

Conclusion:
You should now have a robust Cyber Threat Intelligence dashboard powered by your Pangolin CrowdSec instance, VictoriaMetrics, and Grafana! This setup provides valuable, self-hosted insights into the security events affecting your services. Feel free to customize the Grafana dashboard further to suit your specific needs.

Happy monitoring!


3 Likes

Thanks you so much for make the guide, i will give it a shot!

1 Like

I finally got it working. Crowdsec error

level=errormsg=template: :3:550: executing "" at : can’t evaluate field UnixEpoch in type time.Timeplugin:=http_victoriametrics

Had to change in notifications/http_victoriametrics.yaml

now.UTC.UnixEpochwithnow.UTC.Unix

1 Like

type: http
name: http_victoriametrics
log_level: info # Change to ‘debug’ for more verbose logging during troubleshooting
format: >
{{- range $Alert := . -}}
{{- $traefikRouters := GetMeta . “traefik_router_name” -}}
{{- $instanceName := env “ENROLL_INSTANCE_NAME” -}}
{{- if not $instanceName -}}
{{- $instanceName = “pangolin-crowdsec-default” -}}
{{- end -}}
{{- range .Decisions -}}
{“metric”:{“name”:“cs_lapi_decision”,“instance”:“{{$instanceName}}”,“country”:“{{$Alert.Source.Cn}}”,“asname”:“{{$Alert.Source.AsName}}”,“asnumber”:“{{$Alert.Source.AsNumber}}”,“latitude”:“{{$Alert.Source.Latitude}}”,“longitude”:“{{$Alert.Source.Longitude}}”,“iprange”:“{{$Alert.Source.Range}}”,“scenario”:“{{.Scenario}}”,“type”:“{{.Type}}”,“duration”:“{{.Duration}}”,“scope”:“{{.Scope}}”,“ip”:“{{.Value}}”,“traefik_routers”:{{ printf “%q” ($traefikRouters | uniq | join “,”)}}},“values”: [1],“timestamps”:[{{now.UTC.Unix}}000]}
{{- end }}
{{- end -}}
url: http://victoriametrics:8428/api/v1/import
method: POST
headers:
Content-Type: “application/json”
#Authorization: “” # Uncomment and configure if you set up vmauth for VictoriaMetrics later

1 Like

I have the pangolin stack with Crowdsec set up on my vps. However, I’d like to set up this monitoring on a separate host. How would I go about doing that? i assume i’d have to have my pangolin docker network accessible from another host? Still pretty new to docker networking, etc.

1 Like
