This guide will walk you through integrating TraefikShaper with Pangolin to add dynamic IP whitelisting capabilities to your self-hosted services. This security layer allows temporary access to your services through an approval system.
What You’ll Achieve
- Deploy TraefikShaper alongside your Pangolin installation
- Create a
/knock-knockendpoint for users to request access - Set up notifications via Discord, Telegram, or WhatsApp
- Configure proper routing to prevent lockouts
- Learn recovery procedures if things go wrong
Prerequisites
- A working Pangolin installation with Traefik
- Access to your server’s file system
- Basic understanding of YAML and Docker
1. Installation and Setup

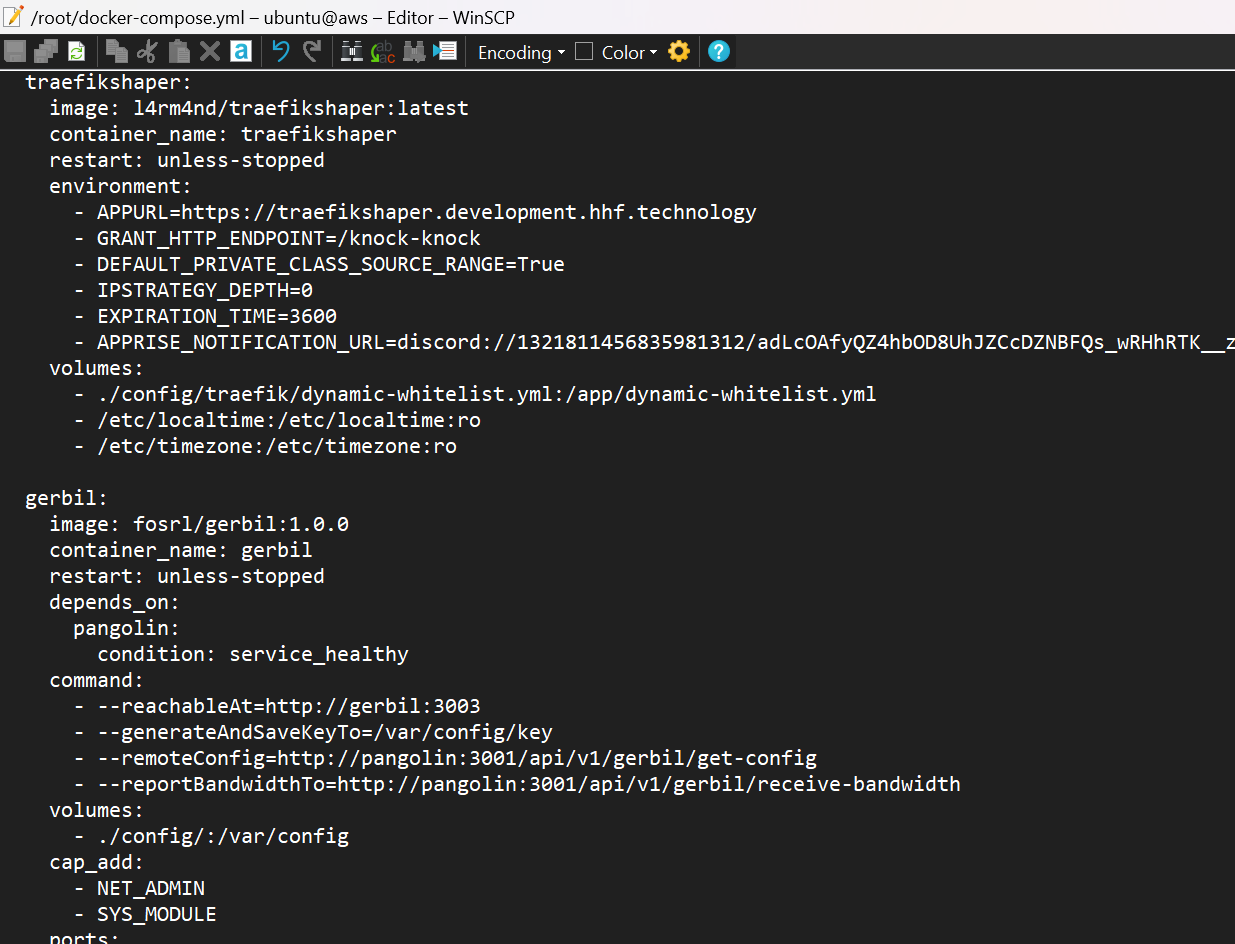

1.1. Update Your Docker Compose File
Add the TraefikShaper service to your docker-compose.yml:
services:
# Your existing Pangolin services...
traefikshaper:
image: l4rm4nd/traefikshaper:latest
container_name: traefikshaper
restart: unless-stopped
environment:
- APPURL=https://your-domain.com #this is up to your convenience.
- GRANT_HTTP_ENDPOINT=/knock-knock #you can change to custom also.
- DEFAULT_PRIVATE_CLASS_SOURCE_RANGE=True
- IPSTRATEGY_DEPTH=0
- EXPIRATION_TIME=3600
- APPRISE_NOTIFICATION_URL=discord://webhook_id/webhook_token
volumes:
- ./config/traefik/dynamic-whitelist.yml:/app/dynamic-whitelist.yml
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
1.2. Create the Dynamic Whitelist File

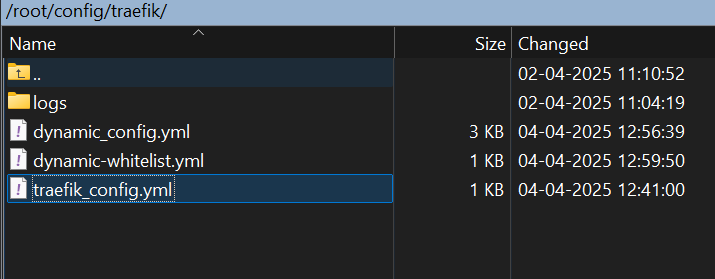

Create a file at ./config/traefik/dynamic-whitelist.yml:
http:
middlewares:
dynamic-ipwhitelist:
ipAllowList:
ipStrategy:
depth: 0
sourceRange:
- 127.0.0.1/32
- 10.0.0.0/8
- 172.16.0.0/12
- 192.168.0.0/16
This adds localhost and private networks to the allowed IPs by default.
1.3. Modify Traefik’s Static Configuration
Edit ./config/traefik/traefik_config.yml to add the file provider:
providers:
http:
endpoint: "http://pangolin:3001/api/v1/traefik-config"
pollInterval: "5s"
file:
directory: "/etc/traefik"
watch: true
# Rest of your existing configuration...
Make sure to remove any middleware applied globally at the entrypoint level, as we’ll apply them to specific routers instead.

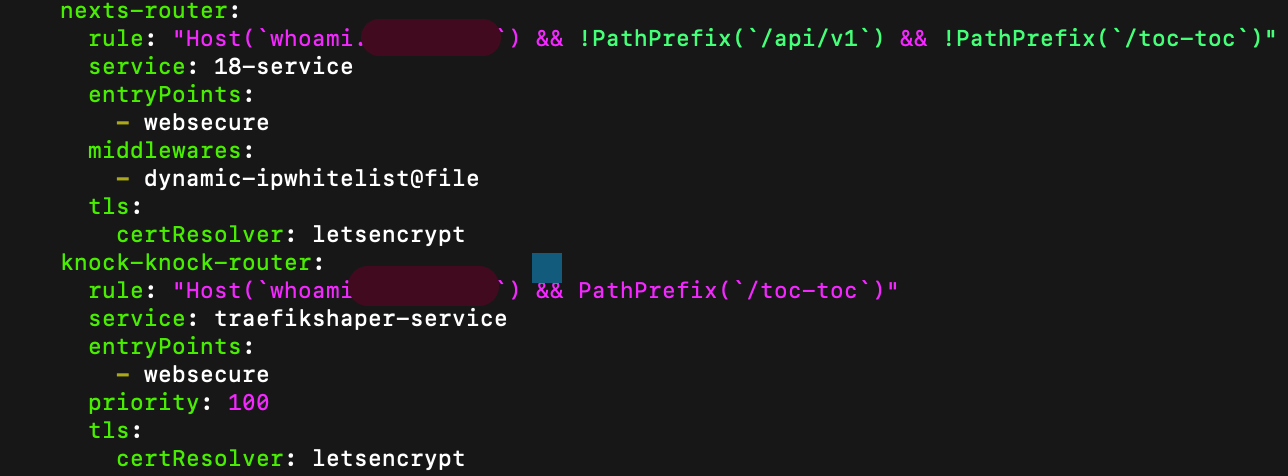

1.4. Update Dynamic Configuration
Edit ./config/traefik/dynamic_config.yml to add TraefikShaper’s routing rules:
http:
routers:
# Your existing routers, adding the whitelist middleware
next-router:
rule: "Host(`your-domain.com`) && !PathPrefix(`/api/v1`) && !PathPrefix(`/knock-knock`)"
service: next-service
entryPoints:
- websecure
middlewares:
- dynamic-ipwhitelist@file
tls:
certResolver: letsencrypt
# Add this for the knock-knock endpoint
knock-knock-router:
rule: "Host(`your-domain.com`) && PathPrefix(`/knock-knock`)"
service: traefikshaper-service
entryPoints:
- websecure
priority: 100
tls:
certResolver: letsencrypt

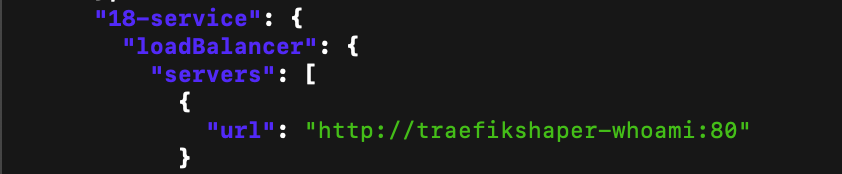

services:
# Your existing services...
# Add this for TraefikShaper
traefikshaper-service:
loadBalancer:
servers:
- url: "http://traefikshaper:5000"
2. Setting Up Notifications
TraefikShaper uses the Apprise library for notifications, which supports many services. Here’s how to set up different notification channels:
2.1. Discord Notifications
-
Create a webhook in your Discord server:
- Server Settings → Integrations → Webhooks → New Webhook
- Copy the webhook URL
-
Format for TraefikShaper:
discord://webhook_id/webhook_tokenFrom
https://discord.com/api/webhooks/1234567890/abcdefg,
extract:discord://1234567890/abcdefg
2.2. Telegram Notifications
- Create a Telegram bot using BotFather
- Get your chat ID using a bot like @userinfobot
- Format for TraefikShaper:
tgram://bot_token/chat_id
2.3. WhatsApp Notifications
WhatsApp is supported through Apprise’s Gotify or REST integrations:
- Set up a Gotify server or use a WhatsApp-to-REST bridge service
- Format for Gotify:
gotify://gotify-server.com/token
2.4. Multiple Notification Services
You can chain multiple notification services together:
discord://webhook_id/webhook_token,tgram://bot_token/chat_id
3. Testing Your Setup
-
Start or restart your Pangolin stack:
docker compose down docker compose up -d -
Try to access a protected resource - you should get blocked
-
Visit
/knock-knockon the same domain -

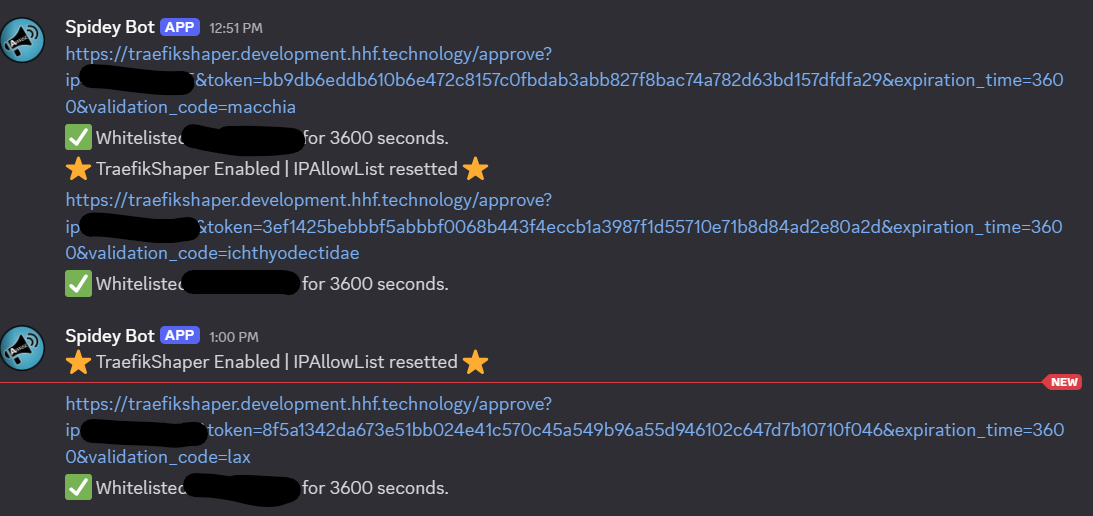

Check your notification service for an approval link
-
Click the approval link to grant access to the requesting IP
-
Try accessing the protected resource again - it should now work
4. Recovery Procedures
4.1. If You’re Locked Out
If you’ve locked yourself out and can’t access your services:
- Connect to your server via SSH
- Edit the whitelist file directly:
nano ./config/traefik/dynamic-whitelist.yml - Add your current IP to the sourceRange list:
sourceRange: - 127.0.0.1/32 - YOUR_IP_ADDRESS/32 - Restart TraefikShaper:
docker restart traefikshaper
4.2. Complete Reset
If you need to start over:
-
Reset the whitelist file:
cat > ./config/traefik/dynamic-whitelist.yml << 'EOF' http: middlewares: dynamic-ipwhitelist: ipAllowList: ipStrategy: depth: 0 sourceRange: - 127.0.0.1/32 - 10.0.0.0/8 - 172.16.0.0/12 - 192.168.0.0/16 EOF -
Restart TraefikShaper:
docker restart traefikshaper
5. Advanced Configuration
5.1. Customizing Access Duration
Set how long temporary access lasts (in seconds):
environment:
- EXPIRATION_TIME=86400 # 24 hours
5.2. IP Strategy Depth
If your Traefik instance is behind a proxy (like Cloudflare):
environment:
- IPSTRATEGY_DEPTH=1
5.3. Excluded IPs
For specific handling of proxy IPs:
environment:
- EXCLUDED_IPS=103.21.244.0/22,103.22.200.0/22
6. Troubleshooting
6.1. Traefik Configuration Errors
If Traefik fails to start with YAML errors:
- Check for tab characters - YAML requires spaces
- Verify that rules are formatted correctly
- Ensure multiple path prefixes use separate conditions with
&&
6.2. TraefikShaper Issues
If TraefikShaper shows “Invalid token” errors:
- Each approval link can only be used once
- Tokens expire after a short time
- Check that SECRET_KEY hasn’t changed
6.3. Notification Problems
If you’re not receiving notifications:
- Verify the notification URL format is correct
- Check TraefikShaper logs for error messages
- Test with a simpler notification service first
7. Security Considerations
- Always include private subnets in your allowlist if needed internally
- Consider setting up a dedicated domain for TraefikShaper
- Keep approval times short for sensitive services
- Regularly check what IPs have been whitelisted
8. Regular Maintenance
It’s good practice to periodically:
- Check the whitelist to remove unnecessary IPs
- Update the TraefikShaper container to the latest version
- Review your notification settings to ensure they still work
- Test the recovery procedures
By following this guide, you’ve added a powerful security layer to your Pangolin installation that gives you granular control over who can access your services, while providing a convenient mechanism for temporary access through notifications.
