Enhanced Traefik Configuration Structure and Security Implementation Guide
Let me explain the new folder structure and organization that has been implemented to enhance Traefik’s configuration management, security, and maintainability.

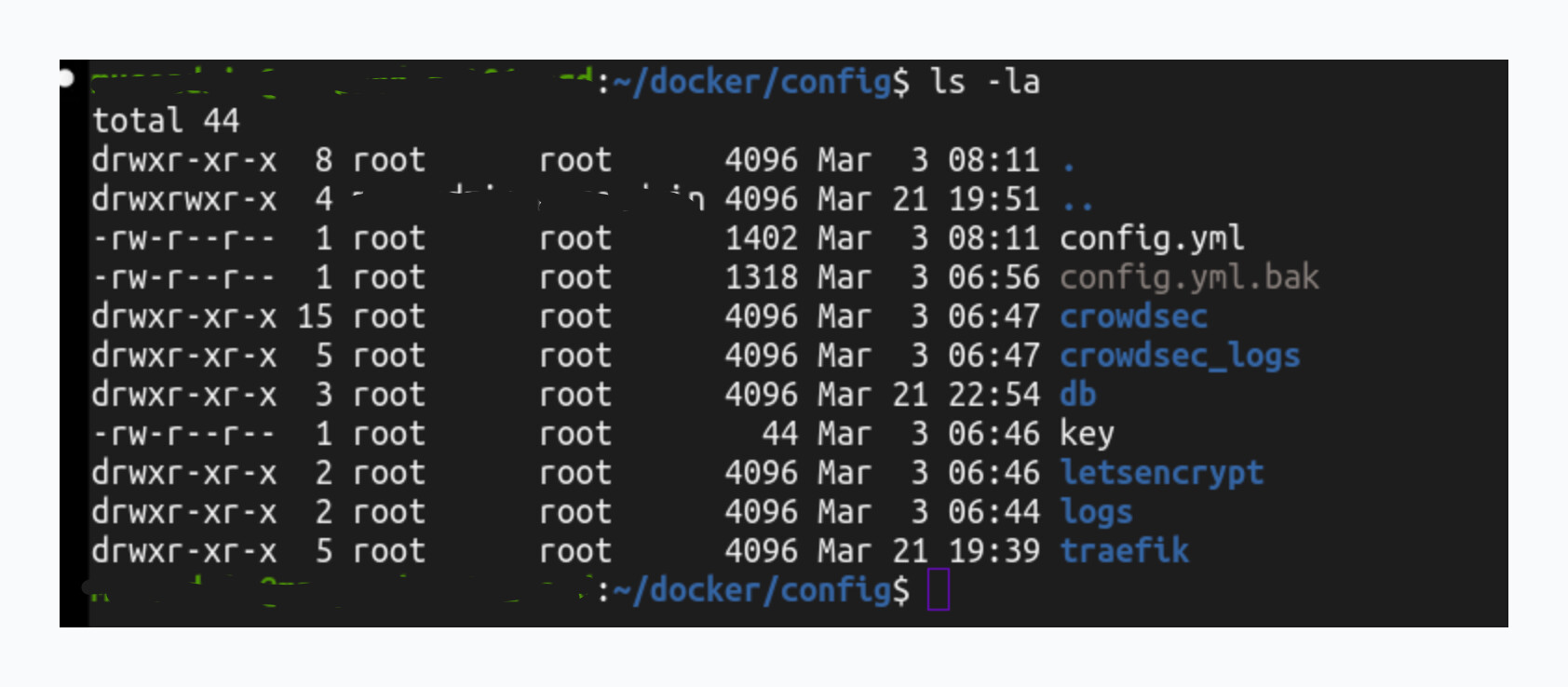

Directory Structure Overview
/root/config/
├── crowdsec/ # CrowdSec configuration and data
├── crowdsec_logs/ # CrowdSec log files
├── db/ # Database files
├── letsencrypt/ # SSL certificates
├── logs/ # General application logs

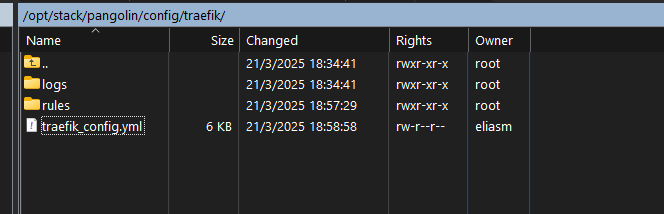

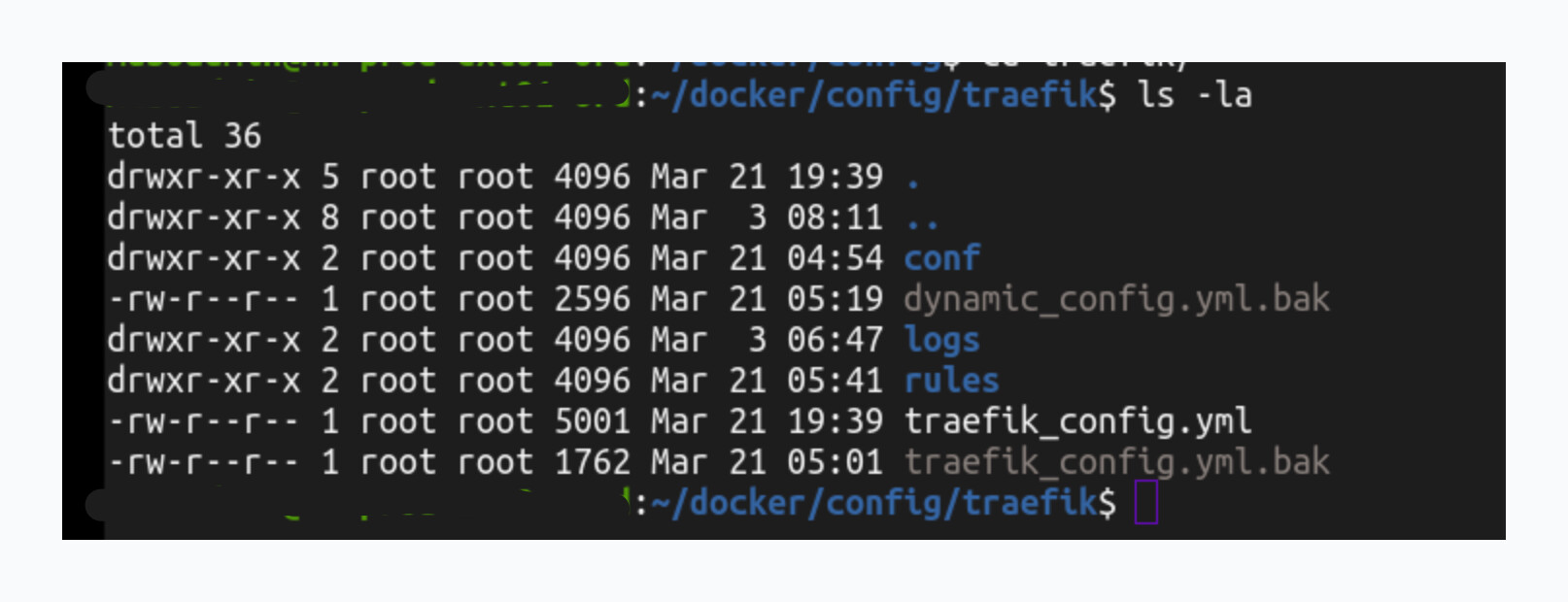

├── traefik/ # Traefik configuration root
│ ├── conf/ # Additional configuration files
│ ├── logs/ # Traefik-specific logs

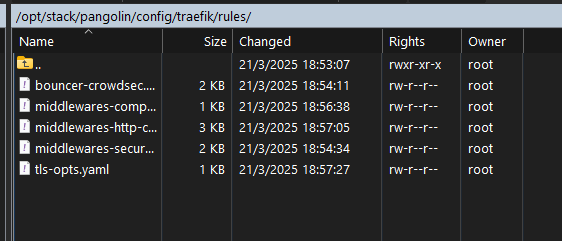

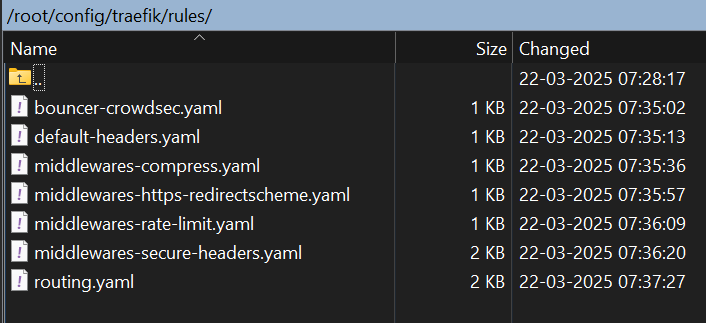

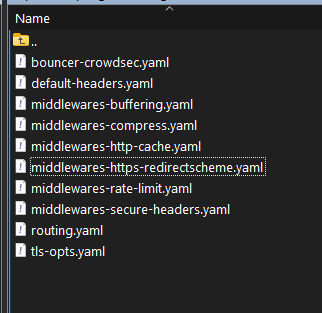

│ ├── rules/ # Modular configuration rules
│ │ ├── bouncer-crowdsec.yaml
│ │ ├── default-headers.yaml
│ │ ├── forwardAuth-authentik.yaml
│ │ ├── middlewares-authentik.yaml
│ │ ├── middlewares-buffering.yaml
│ │ ├── middlewares-compress.yaml
│ │ ├── middlewares-http-cache.yaml
│ │ ├── middlewares-https-redirectscheme.yaml
│ │ ├── middlewares-rate-limit.yaml
│ │ ├── middlewares-secure-headers.yaml
│ │ ├── routing.yaml
│ │ ├── tls-opts.yaml
│ │ └── traefik-dashboard-auth.yaml
│ └── traefik_config.yml
├── config.yml # Main application configuration
└── key # Security keys
Key Improvements in Organization
The new structure implements several important organizational improvements over the original configuration:
-
Modular Configuration Files
- The original configuration had everything in a single
traefik_config.ymlfile - Now separated into logical components under
/traefik/rules/ - Each middleware has its own configuration file
- Makes maintenance and updates much simpler
- The original configuration had everything in a single
-
Security Integration
- New
/crowdsec/directory for threat detection - Dedicated
/crowdsec_logs/for security monitoring - Separate
bouncer-crowdsec.yamlfor security rules - SSL certificates organized in
/letsencrypt/
- New
-
Logging Organization
- Hierarchical log structure with:
- Main logs in
/logs/ - Traefik-specific logs in
/traefik/logs/ - Security logs in
/crowdsec_logs/
- Main logs in
- Better log segregation for easier troubleshooting
- Hierarchical log structure with:
-
Configuration Management
- Main configuration remains in
/config/config.yml - Traefik configuration split between:
- Core settings in
traefik_config.yml - Modular rules in
/rules/
- Core settings in
- Additional configurations in
/conf/directory
- Main configuration remains in
-
Access Control
- New
traefik-dashboard-auth.yamlfor dashboard security - Authentication configurations separated into dedicated files
- Integration with external auth providers through specific modules
- New
This new structure provides several benefits:
- Easier maintenance and updates
- Better security organization
- Clearer separation of concerns
- Simplified troubleshooting
- More flexible configuration management
- Enhanced modularity for future extensions
The organization allows for easy addition of new features while maintaining clarity and security. Each component has its specific location and purpose, making the system more maintainable and scalable.
Comprehensive Analysis of Security and Performance Enhancements in Traefik Configuration
1. Modular Configuration Structure
The new setup adopts a more modular approach by splitting the configuration into separate YAML files under the /rules directory. This improves maintainability and organization compared to the original monolithic configuration. Key modules include:
bouncer-crowdsec.yaml: CrowdSec integration for securitymiddlewares-secure-headers.yaml: Enhanced security headersmiddlewares-compress.yaml: Response compressionmiddlewares-http-cache.yaml: Caching configurationtls-opts.yaml: TLS security settings
2. Security Enhancements
CrowdSec Integration
The new configuration implements CrowdSec for threat detection and mitigation, which wasn’t present in the original setup. This adds:
- Real-time threat detection
- CAPTCHA protection using Cloudflare Turnstile
- Web Application Firewall (WAF) functionality
- Rate limiting and automated IP blocking
Enhanced TLS Security
The new tls-opts.yaml introduces stricter TLS configuration:
- Enforces TLS 1.2 minimum version
- Implements modern cipher suites
- Adds curve preferences for better security
- Enables SNI strict checking
Security Headers
The new configuration adds comprehensive security headers:
- Content Security Policy (CSP)
- Permissions Policy
- Referrer Policy
- X-Robots-Tag for search engine control
- Enhanced XSS protection
3. Performance Optimizations
HTTP Caching
Added Souin plugin for HTTP caching with:
- Configurable TTL per route
- Selective caching based on content type
- Cache exclusions for sensitive endpoints
- Support for surrogate keys
Compression
New compression middleware with:
- Selective compression based on content type
- Minimum response size threshold
- Optimized encoding settings
4. Monitoring and Logging
Enhanced Access Logging
The new configuration implements detailed access logging:
- JSON formatted logs
- Selective field capture
- Header filtering
- Privacy-aware logging (redacting sensitive data)
Metrics Integration
Added support for:
- Prometheus metrics endpoint
- Detailed request tracking
- Performance monitoring
5. Infrastructure Changes
Docker Compose Updates
- Updated Traefik version to 3.3.3
- Added volume mounts for rules directory
- Improved container networking configuration
- Added CrowdSec container integration
6. Authentication and Authorization
Basic Authentication
Added support for:
- Dashboard authentication
- Multiple authentication methods
- Integration with external auth providers
This enhanced configuration significantly improves the security posture, performance, and maintainability of the Traefik setup while maintaining compatibility with the existing Pangolin infrastructure. The modular approach makes it easier to manage and update individual components without affecting the entire system.
Dont Use extra middlewares if you don’t know how to navigate them.
Ask If in doubt
This is not approved by the developers but my own way of keeping the stack clean.
For env either you can create directly or make an .env file.e.g {{env "DOMAINNAME"}} etc
All Files are below.
main docker-compose.yml
name: pangolin
networks:
default:
driver: bridge
name: pangolin
services:
crowdsec:
command: -t
container_name: crowdsec
environment:
ACQUIRE_FILES: /var/log/traefik/*.log
COLLECTIONS: crowdsecurity/traefik crowdsecurity/appsec-virtual-patching crowdsecurity/appsec-generic-rules
ENROLL_INSTANCE_NAME: pangolin-crowdsec
ENROLL_TAGS: docker
GID: "1000"
PARSERS: crowdsecurity/whitelists
expose:
- 6060
healthcheck:
test:
- CMD
- cscli
- capi
- status
image: crowdsecurity/crowdsec:latest
labels:
- traefik.enable=false
ports:
- 6060:6060
restart: unless-stopped
volumes:
- ./config/crowdsec:/etc/crowdsec
- ./config/crowdsec/db:/var/lib/crowdsec/data
- ./config/crowdsec_logs/auth.log:/var/log/auth.log:ro
- ./config/crowdsec_logs/syslog:/var/log/syslog:ro
- ./config/crowdsec_logs:/var/log
- ./config/traefik/logs:/var/log/traefik
gerbil:
cap_add:
- NET_ADMIN
- SYS_MODULE
command:
- --reachableAt=http://gerbil:3003
- --generateAndSaveKeyTo=/var/config/key
- --remoteConfig=http://pangolin:3001/api/v1/gerbil/get-config
- --reportBandwidthTo=http://pangolin:3001/api/v1/gerbil/receive-bandwidth
container_name: gerbil
depends_on:
pangolin:
condition: service_healthy
image: fosrl/gerbil:1.0.0
ports:
- 51820:51820/udp
- 443:443
- 80:80
restart: unless-stopped
volumes:
- ./config/:/var/config
pangolin:
container_name: pangolin
healthcheck:
interval: 3s
retries: 5
test:
- CMD
- curl
- -f
- http://localhost:3001/api/v1/
timeout: 3s
image: fosrl/pangolin:1.0.1
restart: unless-stopped
volumes:
- ./config:/app/config
traefik:
command:
- --configFile=/etc/traefik/traefik_config.yml
container_name: traefik
depends_on:
pangolin:
condition: service_healthy
image: traefik:v3.3.4
network_mode: service:gerbil
restart: unless-stopped
volumes:
- ./config/traefik:/etc/traefik:ro
- ./config/letsencrypt:/letsencrypt
- ./config/traefik/logs:/var/log/traefik
- ./config/traefik/rules:/rules # New addition
- ./config/traefik/conf/:/etc/traefik/conf/ # Volume to store the captcha.html file

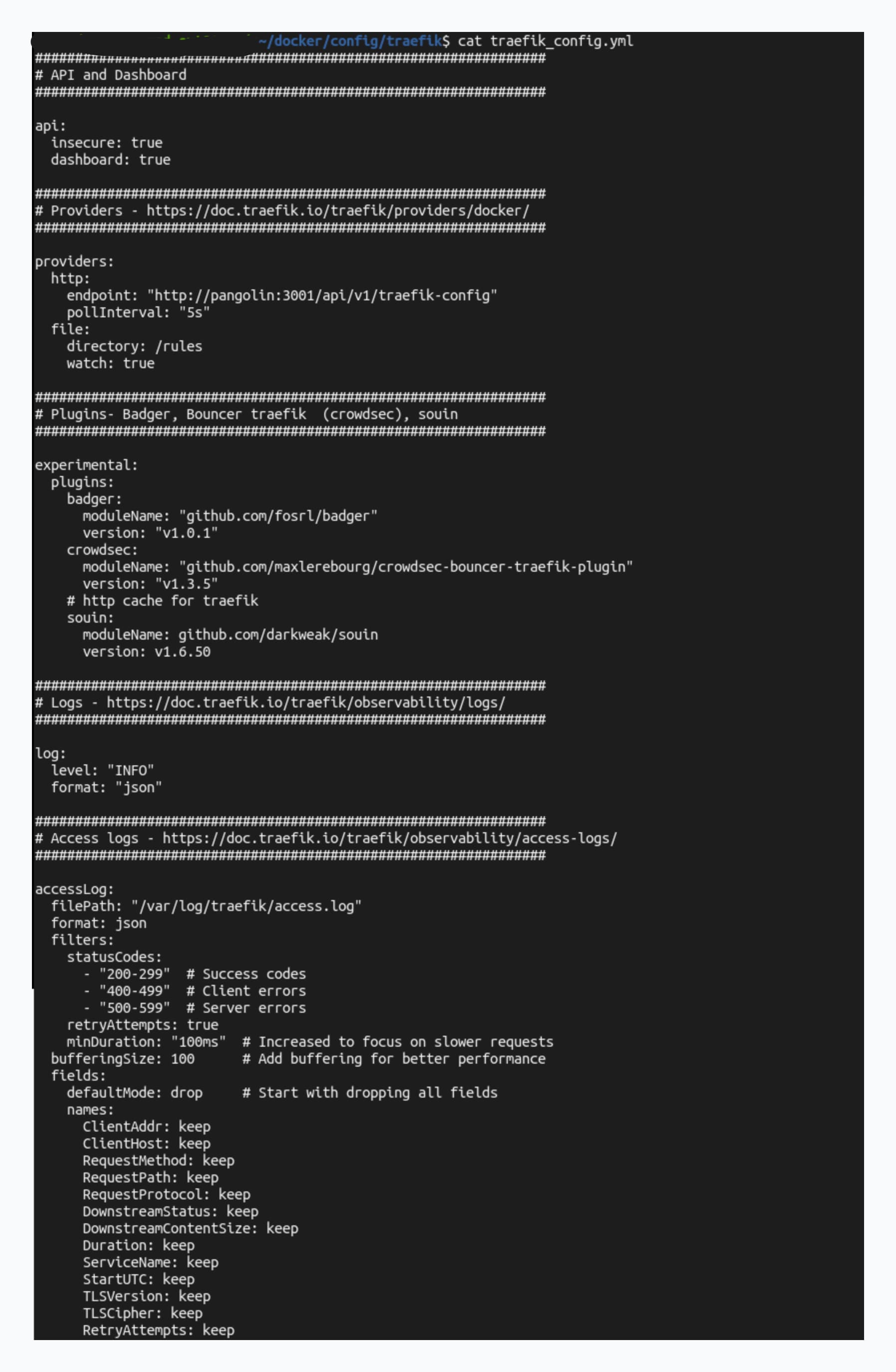

traefik_config.yml
################################################################
# API and Dashboard
################################################################
api:
insecure: true
dashboard: true
################################################################
# Providers - https://doc.traefik.io/traefik/providers/docker/
################################################################
providers:
http:
endpoint: "http://pangolin:3001/api/v1/traefik-config"
pollInterval: "5s"
file:
directory: /rules
watch: true
################################################################
# Plugins- Badger, Bouncer traefik (crowdsec), souin
################################################################
experimental:
plugins:
badger:
moduleName: "github.com/fosrl/badger"
version: "v1.0.0-beta.3"
crowdsec:
moduleName: "github.com/maxlerebourg/crowdsec-bouncer-traefik-plugin"
version: "v1.3.5"
# http cache for traefik
souin:
moduleName: github.com/darkweak/souin
version: v1.6.50
################################################################
# Logs - https://doc.traefik.io/traefik/observability/logs/
################################################################
log:
level: "INFO"
format: "json"
################################################################
# Access logs - https://doc.traefik.io/traefik/observability/access-logs/
################################################################
accessLog:
filePath: "/var/log/traefik/access.log"
format: json
filters:
statusCodes:
- "200-299" # Success codes
- "400-499" # Client errors
- "500-599" # Server errors
retryAttempts: true
minDuration: "100ms" # Increased to focus on slower requests
bufferingSize: 100 # Add buffering for better performance
fields:
defaultMode: drop # Start with dropping all fields
names:
ClientAddr: keep
ClientHost: keep
RequestMethod: keep
RequestPath: keep
RequestProtocol: keep
DownstreamStatus: keep
DownstreamContentSize: keep
Duration: keep
ServiceName: keep
StartUTC: keep
TLSVersion: keep
TLSCipher: keep
RetryAttempts: keep
headers:
defaultMode: drop
names:
User-Agent: keep
X-Real-Ip: keep
X-Forwarded-For: keep
X-Forwarded-Proto: keep
Content-Type: keep
Authorization: redact # Redact sensitive information
Cookie: redact # Redact sensitive information
################################################################

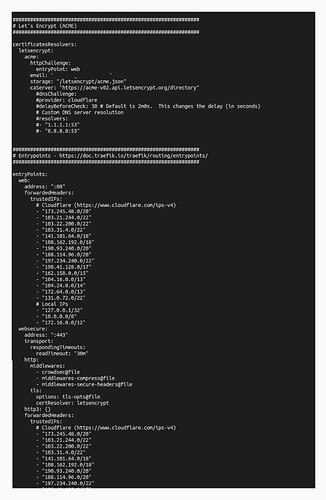

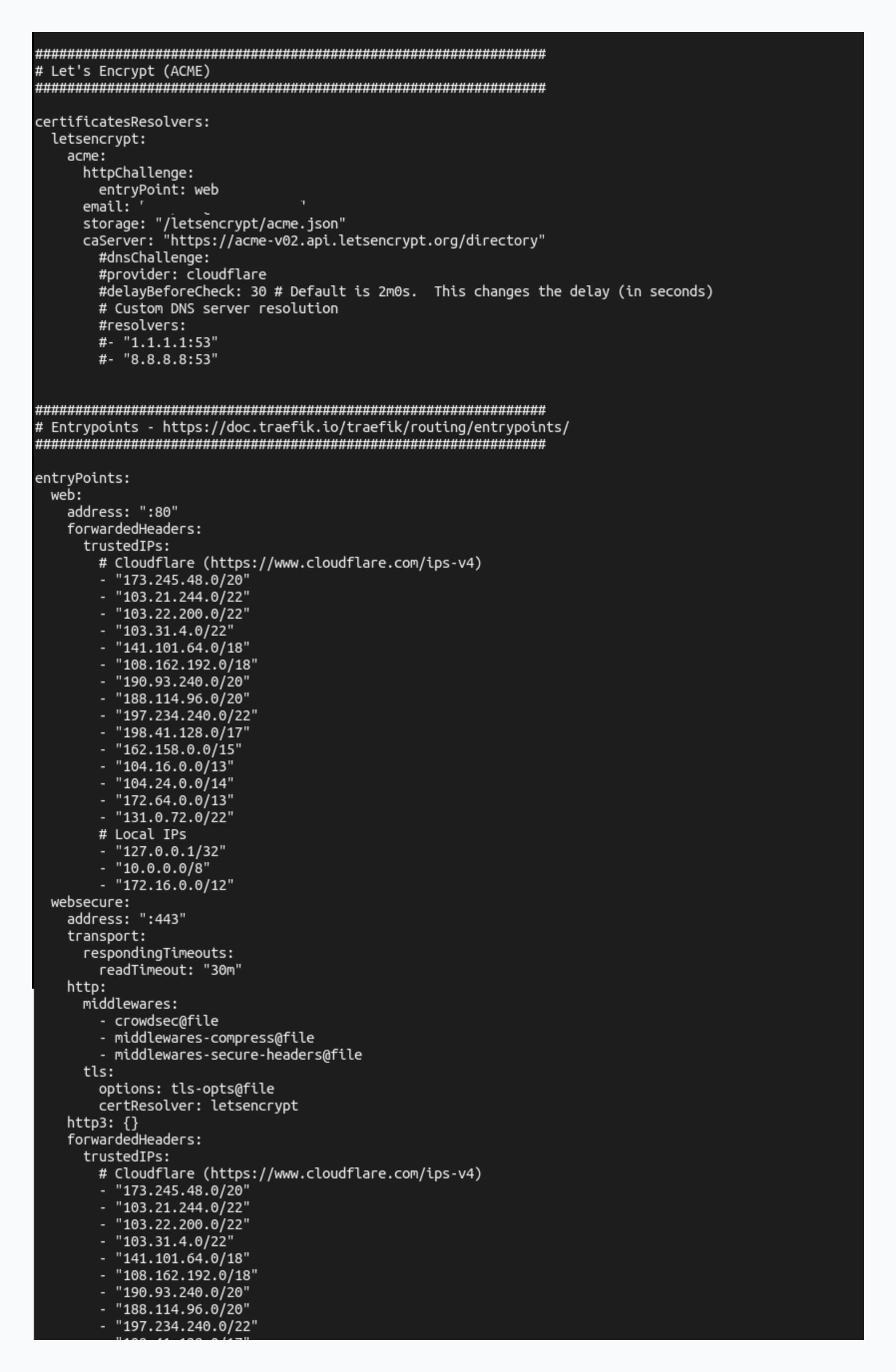

# Let's Encrypt (ACME)
################################################################
certificatesResolvers:
letsencrypt:
acme:
httpChallenge:
entryPoint: web
email: "discourse@hhf.technology"
storage: "/letsencrypt/acme.json"
caServer: "https://acme-v02.api.letsencrypt.org/directory"
#dnsChallenge:
#provider: cloudflare
#delayBeforeCheck: 30 # Default is 2m0s. This changes the delay (in seconds)
# Custom DNS server resolution
#resolvers:
#- "1.1.1.1:53"
#- "8.8.8.8:53"
################################################################
# Entrypoints - https://doc.traefik.io/traefik/routing/entrypoints/
################################################################
entryPoints:
web:
address: ":80"
forwardedHeaders:
trustedIPs:
# Cloudflare (https://www.cloudflare.com/ips-v4)
- "173.245.48.0/20"
- "103.21.244.0/22"
- "103.22.200.0/22"
- "103.31.4.0/22"
- "141.101.64.0/18"
- "108.162.192.0/18"
- "190.93.240.0/20"
- "188.114.96.0/20"
- "197.234.240.0/22"
- "198.41.128.0/17"
- "162.158.0.0/15"
- "104.16.0.0/13"
- "104.24.0.0/14"
- "172.64.0.0/13"
- "131.0.72.0/22"
# Local IPs
- "127.0.0.1/32"
- "10.0.0.0/8"
- "192.168.0.0/16"
- "172.16.0.0/12"
websecure:
address: ":443"
transport:
respondingTimeouts:
readTimeout: "30m"
http:
middlewares: # CHANGE MADE HERE (BOUNCER ENABLED) !!!
- crowdsec@file
- middlewares-compress@file
- middlewares-secure-headers@file
tls:
options: tls-opts@file
certResolver: letsencrypt
http3: {}
forwardedHeaders:
trustedIPs:
# Cloudflare (https://www.cloudflare.com/ips-v4)
- "173.245.48.0/20"
- "103.21.244.0/22"
- "103.22.200.0/22"
- "103.31.4.0/22"
- "141.101.64.0/18"
- "108.162.192.0/18"
- "190.93.240.0/20"
- "188.114.96.0/20"
- "197.234.240.0/22"
- "198.41.128.0/17"
- "162.158.0.0/15"
- "104.16.0.0/13"
- "104.24.0.0/14"
- "172.64.0.0/13"
- "131.0.72.0/22"
# Local IPs
- "127.0.0.1/32"
- "10.0.0.0/8"
- "192.168.0.0/16"
- "172.16.0.0/12"
serversTransport:
insecureSkipVerify: true
Delete dynamic-traefik.yml
Folder # Rules
1. bouncer-crowdsec.yaml
http:
middlewares:
# CrowdSec configuration with proper IP forwarding
crowdsec:
plugin:
crowdsec:
enabled: true
logLevel: INFO
updateIntervalSeconds: 15
updateMaxFailure: 0
defaultDecisionSeconds: 15
httpTimeoutSeconds: 10
crowdsecMode: live
crowdsecAppsecEnabled: true
crowdsecAppsecHost: crowdsec:7422
crowdsecAppsecFailureBlock: true
crowdsecAppsecUnreachableBlock: true
crowdsecLapiKey: "csdcdssffdsfdsfdsf+xXWwpif8j0WeBpeo"
crowdsecLapiHost: crowdsec:8080
crowdsecLapiScheme: http
captchaProvider: turnstile
captchaSiteKey: "dgdfgdfgdfdfgbfdgbdfbdf"
captchaSecretKey: "0x4AAAAAAA6KvsdvdsvDMdsfdsda8a8qmj1E"
captchaGracePeriodSeconds: 1800
captchaHTMLFilePath: "/etc/traefik/conf/captcha.html"
forwardedHeadersTrustedIPs:
- "0.0.0.0/0" # Cloudflare tunnel IP address
clientTrustedIPs:
- "10.0.0.0/8" # Internal LAN IP addresses
- "172.16.0.0/12" # Internal LAN IP addresses
- "192.168.0.0/16" # Internal LAN IP addresses
- "100.89.137.0/20" # Internal LAN IP addresses
# banHTMLFilePath: ./ban.html
2. default-headers.yaml
http:
middlewares:
default-headers:
headers:
frameDeny: true
browserXssFilter: true
contentTypeNosniff: true
forceSTSHeader: true
stsIncludeSubdomains: true
stsPreload: true
stsSeconds: 15552000
customFrameOptionsValue: SAMEORIGIN
customRequestHeaders:
X-Forwarded-Proto: https
3. forwardAuth-authentik.yaml
################################################################
# Dynamic configuration
################################################################
http:
middlewares:
################################################################
# Forward Authentication - OAUTH / 2FA
################################################################
#
# https://git.hhf.technology/goauthentik/authentik/issues/2366
forwardAuth-authentik:
forwardAuth:
address: "http://authentik_server:9000/outpost.goauthentik.io/auth/traefik"
trustForwardHeader: true
authResponseHeaders:
- X-authentik-username
- X-authentik-groups
- X-authentik-email
- X-authentik-name
- X-authentik-uid
- X-authentik-jwt
- X-authentik-meta-jwks
- X-authentik-meta-outpost
- X-authentik-meta-provider
- X-authentik-meta-app
- X-authentik-meta-version
4. middlewares-authentik.yaml
http:
middlewares:
# https://git.hhf.technology/goauthentik/authentik/issues/2366
middlewares-authentik:
forwardAuth:
address: "http://authentik_server:9000/outpost.goauthentik.io/auth/traefik"
trustForwardHeader: true
authResponseHeaders:
- X-authentik-username
- X-authentik-groups
- X-authentik-email
- X-authentik-name
- X-authentik-uid
- X-authentik-jwt
- X-authentik-meta-jwks
- X-authentik-meta-outpost
- X-authentik-meta-provider
- X-authentik-meta-app
- X-authentik-meta-version
5. middlewares-buffering.yaml
################################################################
# Dynamic configuration
################################################################
http:
middlewares:
# Prevent too large of a body
# https://stackoverflow.com/questions/49717670/how-to-config-upload-body-size-restriction-in-traefik
middlewares-buffering:
buffering:
maxRequestBodyBytes: 10485760
memRequestBodyBytes: 2097152
maxResponseBodyBytes: 10485760
memResponseBodyBytes: 2097152
retryExpression: "IsNetworkError() && Attempts() <= 2"
6. middlewares-compress.yaml
################################################################
# Dynamic configuration
################################################################
http:
middlewares:
middlewares-compress:
compress:
includedContentTypes:
- application/json
- text/html
- text/plain
minResponseBodyBytes: 1024
defaultEncoding: gzip
7. middlewares-http-cache.yaml
http:
middlewares:
http-cache:
plugin:
souin:
api:
# prometheus: {}
souin: {}
default_cache:
ttl: 60s # TTL par
allowed_http_verbs:
- GET
- HEAD
- POST
default_cache_control: public, max-age=60
force: true
log_level: debug
portainer-cache:
plugin:
souin:
api:
prometheus: {}
souin: {}
default_cache:
regex:
exclude: '/api/.*|/auth/.*|/settings/.*'
ttl: 60s
allowed_http_verbs:
- GET
- HEAD
default_cache_control: public, max-age=60
log_level: debug
urls:
'portainer.{{ env "DOMAINNAME"}}':
ttl: 120s
default_cache_control: public, max-age=120
'portainer.{{ env "DOMAINNAME"}}/login':
ttl: 0s
ykeys:
Portainer_API_Key:
headers:
Content-Type: 'application/json'
surrogate_keys:
Portainer_Surrogate_Key:
headers:
Content-Type: 'application/json'
servarr-cache:
plugin:
souin:
api:
prometheus: {}
souin: {}
default_cache:
regex:
exclude: '/api/.*|/auth/.*|/indexers/.*|/download/.*|/profile/.*'
ttl: 60s
allowed_http_verbs:
- GET
- HEAD
default_cache_control: public, max-age=60
log_level: debug
urls:
'sonarr.{{ env "DOMAINNAME" }}/':
ttl: 300s
'radarr.{{ env "DOMAINNAME" }}/':
ttl: 300s
'lidarr.{{ env "DOMAINNAME" }}/':
ttl: 300s
'readarr.{{ env "DOMAINNAME" }}/':
ttl: 300s
ykeys:
Servarr_Static_Key:
headers:
Content-Type: 'text/html'
surrogate_keys:
Servarr_Surrogate_Key:
headers:
Content-Type: 'application/json'
8. middlewares-https-redirectscheme.yaml
################################################################
# Dynamic configuration
################################################################
http:
middlewares:
# Middleware for Redirection
# This can be used instead of global redirection
middlewares-https-redirectscheme:
redirectScheme:
scheme: https
permanent: true
9. middlewares-rate-limit.yaml
################################################################
# Dynamic configuration
################################################################
http:
middlewares:
# DDoS Prevention
middlewares-rate-limit:
rateLimit:
average: 100
burst: 50
10. middlewares-secure-headers.yaml
################################################################
# Dynamic configuration
################################################################
http:
middlewares:
################################################################
# Good Basic Security Practices
################################################################
middlewares-secure-headers:
headers:
accessControlAllowMethods:
- GET
- OPTIONS
- PUT
accessControlMaxAge: 100
hostsProxyHeaders:
- "X-Forwarded-Host"
stsSeconds: 63072000
stsIncludeSubdomains: true
stsPreload: true
forceSTSHeader: true
# customFrameOptionsValue: "allow-from https:{{env "DOMAINNAME"}}" #CSP takes care of this but may be needed for organizr.
customFrameOptionsValue: SAMEORIGIN # https://developer.mozilla.org/en-US/docs/Web/HTTP/Headers/X-Frame-Options
contentTypeNosniff: true
browserXssFilter: true
sslForceHost: true # add sslHost to all of the services
sslHost: "*.testing.hhf.technology"
referrerPolicy: "same-origin"
permissionsPolicy: "camera=(), microphone=(), geolocation=(), payment=(), usb=()"
customResponseHeaders:
X-Robots-Tag: "none,noarchive,nosnippet,notranslate,noimageindex,noindex,nofollow" #global not tracking with websearch
# X-Robots-Tag: "noindex,nofollow" " # nextcloud recommandation
server: ""
# https://community.traefik.io/t/how-to-make-websockets-work-with-traefik-2-0-setting-up-rancher/1732
# X-Forwarded-Proto: "https"
11. routing.yaml
http:
# if you want add athentik on your service just add this on rour router
routers:
# HTTP to HTTPS redirect router
main-app-router-redirect:
rule: "Host(`pangolin.testing.hhf.technology`)"
service: next-service
entryPoints:
- web
middlewares:
- middlewares-https-redirectscheme
# Next.js router (handles everything except API and WebSocket paths)
next-router:
rule: "Host(`pangolin.testing.hhf.technology`) && !PathPrefix(`/api/v1`)"
service: next-service
entryPoints:
- websecure
tls:
certResolver: letsencrypt
# API router (handles /api/v1 paths)
api-router:
rule: "Host(`pangolin.testing.hhf.technology`) && PathPrefix(`/api/v1`)"
service: api-service
entryPoints:
- websecure
tls:
certResolver: letsencrypt
# WebSocket router
ws-router:
rule: "Host(`pangolin.testing.hhf.technology`)"
service: api-service
entryPoints:
- websecure
tls:
certResolver: letsencrypt
# if you want add athentik on your service just add this on rour router
#authentik-rtr:
#service: authentik-svc
#rule: Host(`{{ env "AUTHENTIK_HOST" }}`)
#authentik-output-rtr:
#service: authentik-svc
#rule: HostRegexp(`{subdomain:[a-z0-9-]+}.{{ env "DOMAINNAME" }}`) && PathPrefix(`{{ env "AUTHENTIK_OUTPOST_PATH_PREFIX" }}`)
traefik-rtr:
rule: "Host(`traefik.testing.hhf.technology`)"
service: api@internal
middlewares:
- traefik-dashboard-auth@file
services:
next-service:
loadBalancer:
servers:
- url: "http://pangolin:3002" # Next.js server
api-service:
loadBalancer:
servers:
- url: "http://pangolin:3000" # API/WebSocket server
#authentik-svc:
#loadBalancer:
#servers:
#- url: {{ env "AUTHENTIK_URL" }}
serversTransports:
insecureTransport:
insecureSkipVerify: true
12. tls-opts.yaml
################################################################
# Dynamic configuration
# https://doc.traefik.io/traefik/https/tls/
################################################################
tls:
options:
tls-opts:
sniStrict: true
minVersion: VersionTLS12
cipherSuites:
- TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
- TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
- TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
- TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
- TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305
- TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305
- TLS_AES_128_GCM_SHA256
- TLS_AES_256_GCM_SHA384
- TLS_CHACHA20_POLY1305_SHA256
- TLS_FALLBACK_SCSV # Client is doing version fallback. See RFC 7507
curvePreferences:
- secp521r1 # CurveP521
- secp384r1 # CurveP384
mintls13:
minVersion: VersionTLS13
13. traefik-dashboard-auth.yaml
http:
middlewares:
traefik-dashboard-auth:
basicAuth:
users:
- "VFF0WVRkak56YzBOek5rWkRGaiJ9"
If you need .env e.g.(This is not compulsory)
################################################################
# Base Configuration
################################################################
DOCKERDIR=/CHAMGEME/Homelab-docker-server
PUID=root
PGID=root
DOMAINNAME=CHANGE_ME
################################################################
# SMTP Configuration base conf wit google smtp
# https://support.google.com/accounts/answer/185833?hl=fr
################################################################
SMPT_EMAIL_HOST=smtp.gmail.com
SMPT_EMAIL_PORT=25
SMPT_EMAIL_USERNAME=gmail_smtp_username # secrets name
SMPT_EMAIL_PASSWORD=gmail_smtp_password # secrets name
SMPT_EMAIL_USE_TLS=true
SMPT_EMAIL_USE_SSL=false
SMPT_EMAIL_TIMEOUT=10
SMPT_EMAIL_FROM=gmail_smtp_username # secrets name
################################################################
#################### Traefik 3 - June 2024 #####################
# Cloudflare IPs (IPv4 and/or IPv6): https://www.cloudflare.com/ips/
################################################################
CF_EMAIL=CHANGEME
CLOUDFLARE_IPS=173.245.48.0/20,103.21.244.0/22,103.22.200.0/22,103.31.4.0/22,141.101.64.0/18,108.162.192.0/18,190.93.240.0/20,188.114.96.0/20,197.234.240.0/22,198.41.128.0/17,162.158.0.0/15,104.16.0.0/13,104.24.0.0/14,172.64.0.0/13,131.0.72.0/22
LOCAL_IPS=127.0.0.1/32,10.0.0.0/8,192.168.0.0/16,172.16.0.0/12
################################################################
# Secrets command
################################################################
SECRETS_RUN=/run/secrets/
SECRETS_FILE=file://${SECRETS_RUN}
################################################################
# Proxy services
################################################################
DOCKER_HOST=tcp://socket-proxy:2375
################################################################
# Traefik Configuration
# generate TRAEFIK_DASHBOARD_CREDENTIALS here : https://www.web2generators.com/apache-tools/htpasswd-generator
################################################################
TRAEFIK_DASHBOARD_CREDENTIALS=CHANGE_ME
TRAEFIK_DASHBOARD_NAME=traefik-dashboard
TRAEFIK_DASHBOARD_HOST=${TRAEFIK_DASHBOARD_NAME}.${DOMAINNAME}
################################################################
# Authentik Configuration
################################################################
AUTHENTIK_SERVICE_NAME=authentik_server
AUTHENTIK_SERVICE_PORT=9000
AUTHENTIK_COOKIE_DOMAIN=${DOMAINNAME}
AUTHENTIK_HOST=authentik.${DOMAINNAME}
AUTHENTIK_URL=http://${AUTHENTIK_SERVICE_NAME}:${AUTHENTIK_SERVICE_PORT}
AUTHENTIK_OUTPOST_PATH_PREFIX=/outpost.goauthentik.io/
POSTGRES_PASSWORD_FILE=${SECRETS_RUN}authentik_postgresql_password
#POSTGRES_USER_FILE=${SECRETS_RUN}authentik_postgresql_user
POSTGRES_USER_FILE=${SECRETS_RUN}authentik_postgresql_db
POSTGRES_DB_FILE=${SECRETS_RUN}authentik_postgresql_db
AUTHENTIK_REDIS__HOST=authentik_redis
AUTHENTIK_POSTGRESQL__HOST=authentik_postgresql
AUTHENTIK_POSTGRESQL__NAME=${SECRETS_FILE}authentik_postgresql_db
#AUTHENTIK_POSTGRESQL__USER=${SECRETS_FILE}authentik_postgresql_user
AUTHENTIK_POSTGRESQL__USER=${SECRETS_FILE}authentik_postgresql_db
AUTHENTIK_POSTGRESQL__PASSWORD=${SECRETS_FILE}authentik_postgresql_password
AUTHENTIK_DISABLE_STARTUP_ANALYTICS=true
AUTHENTIK_DISABLE_UPDATE_CHECK=false
AUTHENTIK_ERROR_REPORTING__ENABLED=false
AUTHENTIK_LOG_LEVEL=info # debug, info, warning, error, trace
AUTHENTIK_SECRET_KEY=${SECRETS_FILE}authentik_secret_key # openssl rand 60 | base64 -w 0
AUTHENTIK_COOKIE_DOMAIN=${DOMAINNAME}
# AUTHENTIK_LISTEN__TRUSTED_PROXY_CIDRS: CHANGEME_IFAPPLICABLE # Defaults to all of: 127.0.0.0/8, 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16, fe80::/10, ::1/128
DOCKER_HOST=tcp://socket-proxy:2375 # Use this if you have Socket Proxy enabled.
# SMPT authentik configuration
AUTHENTIK_EMAIL__HOST=${SMPT_EMAIL_HOST}
AUTHENTIK_EMAIL__PORT=${SMPT_EMAIL_PORT}
AUTHENTIK_EMAIL__USERNAME=${SECRETS_FILE}${SMPT_EMAIL_USERNAME}
AUTHENTIK_EMAIL__PASSWORD=${SECRETS_FILE}${SMPT_EMAIL_PASSWORD}
AUTHENTIK_EMAIL__USE_TLS=${SMPT_EMAIL_USE_TLS}
AUTHENTIK_EMAIL__USE_SSL=${SMPT_EMAIL_USE_SSL}
AUTHENTIK_EMAIL__TIMEOUT=${SMPT_EMAIL_TIMEOUT}
AUTHENTIK_EMAIL__FROM=${SECRETS_FILE}${SMPT_EMAIL_FROM}
################################################################
# GeoIP Configuration
# Go to https://dev.maxmind.com/geoip/geolite2-free-geolocation-data in order to generate a free license key
# https://www.maxmind.com/en/accounts/current/license-key for use.
################################################################
GEOIPUPDATE_EDITION_IDS="GeoLite2-City GeoLite2-ASN"
GEOIPUPDATE_FREQUENCY=8
GEOIPUPDATE_ACCOUNT_ID_FILE=${SECRETS_RUN}geoip_acccount_id
GEOIPUPDATE_LICENSE_KEY_FILE=${SECRETS_RUN}geoip_license_key
################################################################
# Crowdsec Configuration
################################################################
CROWDSEC_TRAEFIK_BOUNCER_LAPI_KEY=CHANGE_ME #to get api key : docker exec crowdsec cscli bouncers add traefik-bouncer
